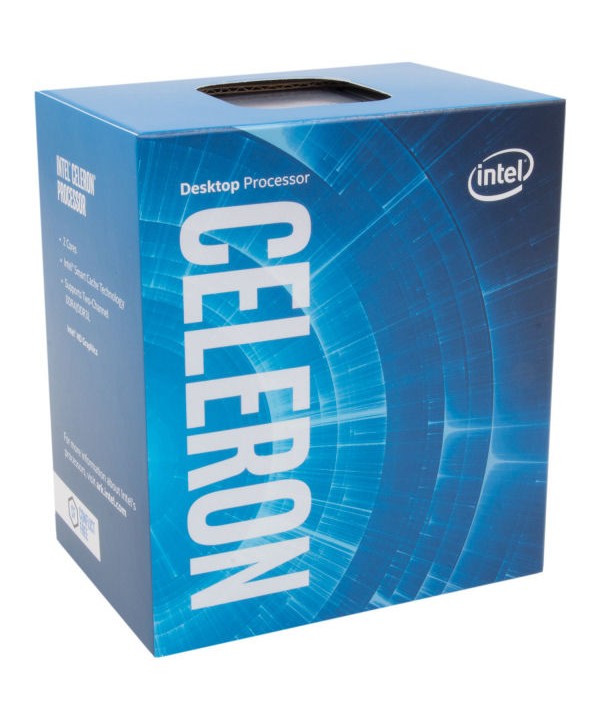

INTEL - Celeron G3930 2.9Ghz Kaby Lake Socket 1151 BOXED

INTEL - Celeron G3930 2.9Ghz Kaby Lake Socket 1151 BOXED

#INI600 - BX80677G3930

Nuovo

Disponibilità: Prodotto Esaurito

Model
G3930
CPU part number
  • BX80677G3930
Frequency 2900 MHz
Bus speed 8 GT/s DMI
Clock multiplier 29
Package1151-land Flip-Chip Land Grid Array
SocketSocket 1151
MicroarchitectureKaby Lake
Processor core Kaby Lake-S
Core stepping S0 (SR35K)
Manufacturing process0.014 micron
Data width64 bit
The number of CPU cores2
The number of threads2
Floating Point UnitIntegrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 2 x 256 KB 4-way set associative caches
Level 3 cache size2 MB shared cache
Physical memory64 GB
MultiprocessingUniprocessor
Features
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • NX / XD / Execute disable bit
  • VT-x / Virtualization technology
  • TSX / Transactional Synchronization Extensions
  • MPX / Memory Protection Extensions
  • SGX / Software Guard Extensions
Low power features
  • Core C1/C1E, C3, C6, C7 and C8 states
  • Package C2, C3, C6, C7 and C8 states
  • Enhanced SpeedStep technology
Integrated peripherals / components
Display controller
  • 3 displays
  • DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4
Integrated graphicsGPU Type: Intel HD 610
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1050
Memory controllerThe number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, DDR4-2133, DDR4-2400
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 38.4
Other peripherals
  • Direct Media Interface 3.0 (4 lanes)
  • PCI Express 3.0 interface (16 lanes)
Electrical / Thermal parameters
Maximum operating temperature 100°C
Thermal Design Power 51 Watt
