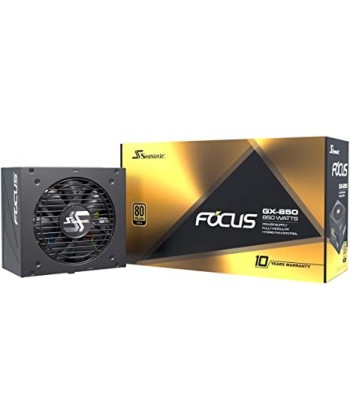

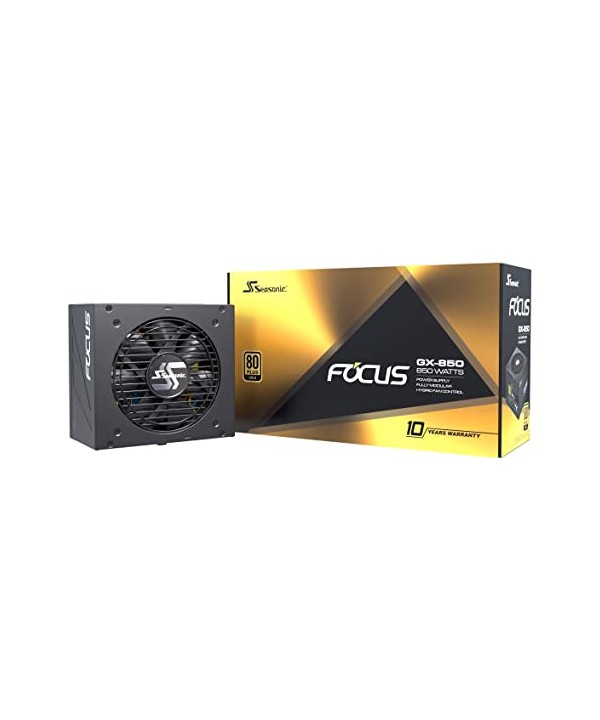

SEASONIC - Focus Plus 850W Modulare 80Plus Gold

SEASONIC - Focus Plus 850W Modulare 80Plus Gold

#SEN069 - FOCUS-GX-850

Nuovo

Disponibilità: Prodotto Esaurito

Technical Specifications
80PLUS®Gold
Cybenetics Efficiency LevelTBA
Cybenetics Noise LevelTBA
Form FactorIntel ATX 12 V
Dimensions140 mm (L) x 150 mm (W) x 86 mm (H)
Fan InformationFan Size120 mm
Fan ControlS3FC - Fanless until 30 % load
Fan BearingFluid Dynamic Bearing
Life Expectancy50,000 hours at 40 °C, 15 % - 65 % RH
Cable InformationModularityFully Modular
Cable typeFlat black cables
Electrical FeaturesOperating Temperature0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan100,000 hours
AC InputFull Range
ProtectionOPP, OVP, UVP, OCP, OTP, SCP
Safety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty10 Years
Power Output
AC InputVoltage: 100 V - 240 V
Current: 12 - 6 A
Frequency: 50 Hz - 60 Hz
DC OutputRail+3.3 V+5 V+12 V-12 V+5 VSB
Maximum Power20 A20 A70 A0.3 A3 A
100 W840 W3.6 W15 W
Total continuous power850 W
Cavi
1 20/24 Pin
2 8/4 Pin CPU
3 8/6 Pic PCIe
8 Sata
5 Molex
