OrigenAE - S16T HTPC Display Touchscreen Black (no ali)

#ORG108 - S16T black

Nuovo

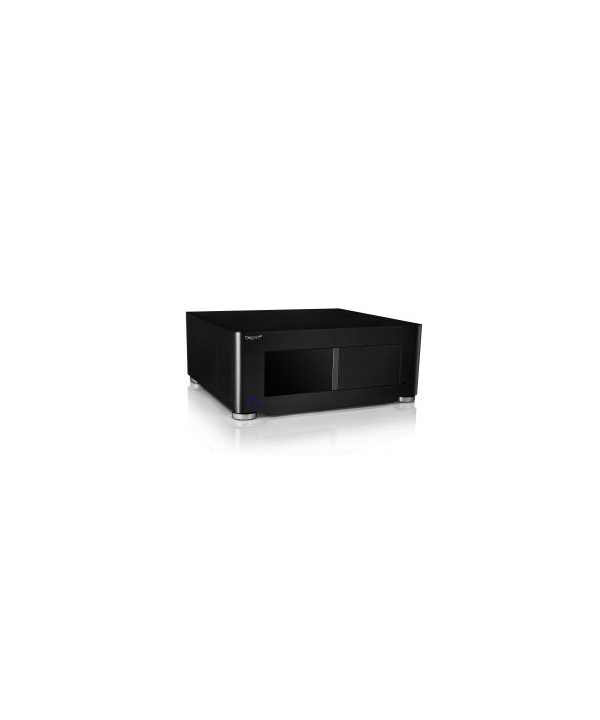

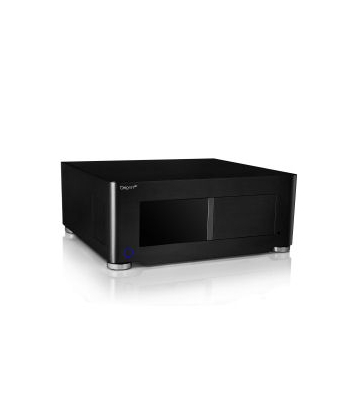

S16T HTPC Display Touchscreen Black (no ali)

Maggiori dettagli

Disponibilità: Prodotto Esaurito

Featuring the same one-piece 5mm thick curved-edge-design used in the S21T, the S16T is a full-sized chassis designed to fulfil all your hardware requirements. Measuring 175mm in height, the S16T will support a full-size PSU, full-size ATX motherboard, 4 hard drives, optical drive and built-in media bay. The S16T doesn't’t stray far from the design elements consistent with the rest of the S-range, once again the optical drive, media bays and TFT controls are hidden behind a door which utilizes our new patented hinge-design/mechanism to ensure the smoothest and most refined movement.
The S16T also provides support for an additional hard drive, making for a total of 5 (Ideal for premium systems with raid configurations) whilst 80mm and 92mm fans keep the system cool and quiet.
It features a 7” TFT touch-panel with full HD support (1920x 1080) which provides the user with an interface to control your media center from the chassis without the need to turn on your main display.

external dimensions (WxHxD)

construction materials

mainboard support

psu support

pci / agp card support

drive bays



fan support


expansion slots

front I/O ports




ir solution

net weight

colour

tft specification


- 435 x 175 x 390mm (*inc feet)

- all aluminium chassis

- full atx, micro atx, mini-itx

- full atx

- full height

- 4 x 3.5" internal drive bays
- 1 x 3.5" optional drive bay (HM100)
- 1 x 5.25 optical drive bay

- 2 x 80mm exhaust fans
- 1 x 92mm intake fan

- 7

- 2 x usb ports (+2 internal)
- 1 x firewire (1394) port
- 1 x headphone (HD & AC97)
- 1 x microphone (HD & AC97)
- 1 x multi format media bay

- IR310 ir module

- ~6.2kg

- silver

- 7" screen size
- 15:9 ratio
- 800 x 480 native resolution
- 1920 x 1080 max resolution
- 1 x svga input
- 12v dc input
- 9w power consumption
