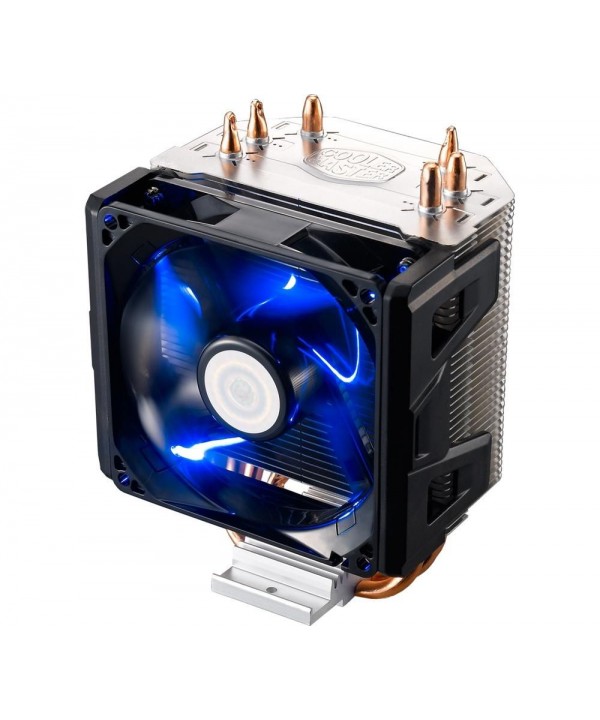

COOLER MASTER - HYPER 103 x Socket 1151 1150 AM3 FM2

The Hyper 103 is an affordable mainstream heatsink that delivers great cooling performance. Air flow is optimized towards heatpipes thanks to a special fin design and exclusive X-Vent and Air-Guide technology. A 92mm PWM fan has a wide speed range. This low profile tower heatsink is a great match for all modern small form factor systems.

• Cooler Master exclusive X-Vent and Air-Guide technology optimize the air flow toward heatpipes and ultimately reduce CPU temperature.
• 3 direct Contact heatpipes with stylish aluminum fins to provide excellent heat dissipation.
• 92mm wide range PWM blue LED fan, RPM can be fine tuned for maximum airflow or whisper quiet operation.
• New tool-free mounting system for trouble-less installation.

ModelRR-H103-22PB-R1CPU SocketIntel® LGA 2011/1366/1156/1155/1150/775
AMD FM2/FM1/AM3+/AM3 /AM2Dimensions108 x 89.5 x 138.5 mm (4.3 x 3.5 x 5.5 in)Heat Sink Dimensions96 x 61 x 138.5 mm (3.8 x 2.4 x 5.5 in)Heat Sink Material3 Direct Contact Heatpipes / Aluminum FinsHeat Sink Weight500 g / 1.1 lbHeat Pipe DimensionsØ6mmFan Dimensions92 x 92 x 25 mm (4.7 x 4.7 x 1 in)Fan Speed800~2,200 RPM (PWM) ± 10%Fan Air Flow15.7~43.1 CFM ± 10%Fan Air Pressure0.35~2.63 mm H2O ± 10%Fan Life Expectancy40,000 hours Noise Level17~30 dBA Bearing TypeLong life sleeve bearingConnector4-PinRated Voltage12 VDCRated Current0.15A**Power Consumption1.8 WFan Weight80 g / 0.18 lb
