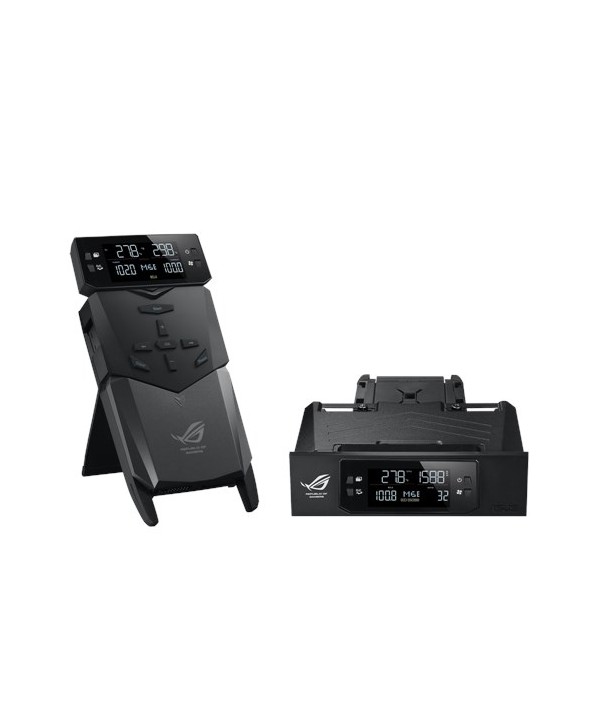

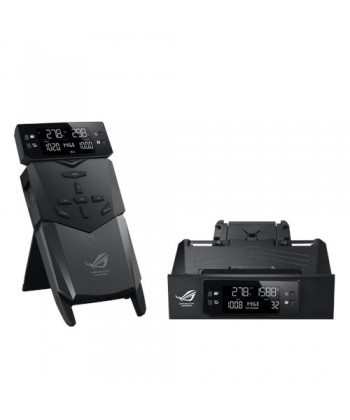

ASUS - OC Panel 2x5.25"

ASUS - OC Panel 2x5.25"

#AMB381 - 90MC01Y0-M0UAY0

Nuovo

Disponibilità: Prodotto Esaurito

  • Display
    2.6" LCM
  • Features
    • Pure hardware-based overclocking support
    • Boot debug POST code
    • Intuitive tunning in two OC modes
      • EXTREME Mode for subzero OC benching
      • NORMAL Mode for in-chassis usage
    • Seamless integration with CPU Level Up at one-click OC button
    • Real-time control and display CPU fan speed, temperature, BCLK and RATIO
    • Adjustable system voltages, frequencies on-the-fly
    • Stylish design with 90 plus-degree-tilt movable faceplate (EXTREME Mode)
    • FanSpeed Control button
      • Standard/Silent/Turbo mode
    • 4 additional 4-pin fan headers
    • LCM backlight on/off
    • ROG exclusive features
      • VGA Hotwire
      • Subzero Sense
      • Slow Mode
      • Pause Switch
      • VGA SMB header
      • ProbeIt
  • I/O Ports
    POWER：1 x SATA power connector
    ROG_EXT port：1 x 18-1 pin data connection port
    FAN: 4 x 4-pin extra Fan connectors
  • Power
    Voltage: +12V, +5V, +5VSB
    Power consumption: 5A
  • System Requirements
    1 x 5.25" drive bay required for NORMAL Mode installation
    1 x SATA power cable from system power supply
  • Compatibility
    Maximus VI Series (Extreme/Formula/Gene/Hero/Impact), Rampage IV Black Edition and other motherboards with ROG_EXT port
    *Visit the ASUS website at www.asus.com for the latest motherboard support/compatibility lists
    **Please install the latest utility/firmware (ROG Connect PLUS) for better compatibility.
    ***Update the motherboard BIOS to the latest version for better compatibility with OC Panel.
    ****Extreme Mode capabilities, including V1, V2, DRAM and other voltage definitions, vary by chipset. Please refer to your motherboard manual for details.
