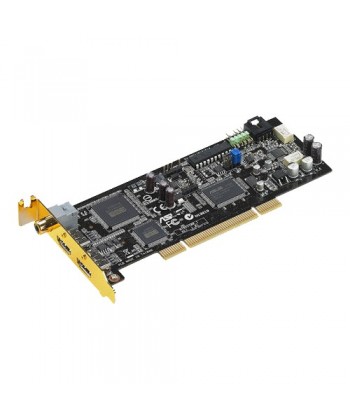

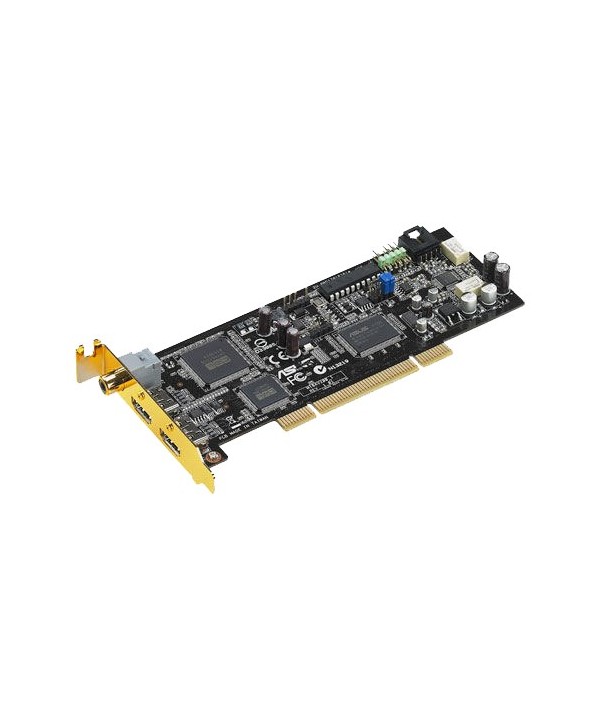

La prima scheda audio HDMI 1.3 al mondo con audio Blu-ray
- Sistema di riproduzione audio Blu-ray
- Uscita audio/ video digitale Full-HD
- Tecnologia Dolby True HD, DTS HD-Master bitstreaming
- Supporta il formato video 24p
- Ideale per tutti i PC Home Theater
- Audio Interface
PCI
- Chipset
Audio Processor :ASUS AV200 High-Definition Sound Processor (Max. 192KHz/24bit)
- Sample Rate and Resolution
Analog Playback Sample Rate and Resolution :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
ASIO Driver Support :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
- Connectivity
Digital
1 x S/PDIF out (1 x Optical / Coaxial combo)
1 x HDMI out
1 x HDMI in
- Special Features
Dolby® Technologies : Dolby® Digital Live/Dolby® Headphone /Dolby® Virtual Speaker /Dolby® Pro-Logic II
DTS® Technologies : DTS Interactive Encoder/DTS Neo:PC technologies
GX 2.5 Game Audio Engine
- Accessories
DVI-to-HDMI cable x 1
HDMI-to-HDMI cable x 1
- Note
Bundled software:
● AcrSoft TotalMedia Theatre supports playback of all three Blu-ray disc video formats: High Definition MPEG-2, AVC, and VC1's well as all kinds of other High Definition (HD) content: WMV HD, Quicktime HD, DivX HD, and H.264 HD
● 7.1ch Blu-ray disc/HD-DVD/DVD movie player supports HD video/audio decoding
