SCHEDA DI RETE GIGABIT 10/100/1000 PCI

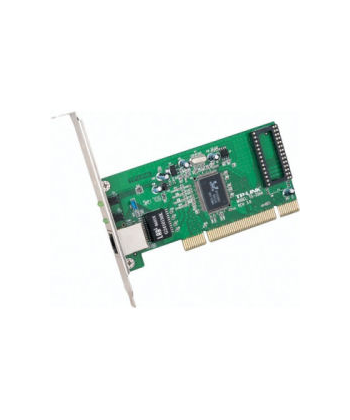

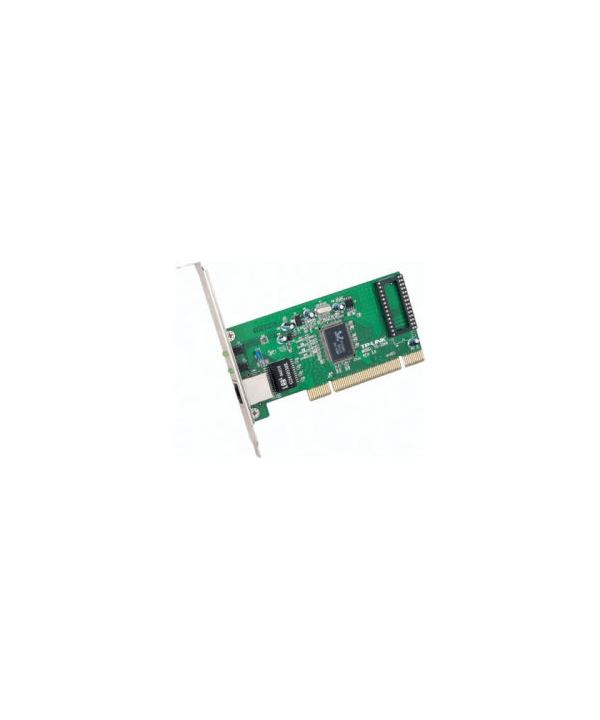

TP-LINK - SCHEDA DI RETE GIGABIT 10/100/1000 PCI

#TPL038 - TG-3269

Nuovo

REALTEK 10/100/1000 PCI

Maggiori dettagli

Disponibilità: Prodotto Esaurito

  • Supports 32-bit 33/66MHz PCI Bus
  • Supports 10/100/1000Mbps Nway Auto-Negotiation
  • Supports 10/100Mbps full and half duplex, 1000Mbps full duplex
  • Supports Full Duplex Flow Control (IEEE 802.3x)
  • Supports IEEE 802.1P, IEEE 802.1Q VLAN tag
  • Supports Jumbo Frame
  • Supports Auto-MDI/MDIX
  • Provides Bootrom slot, supporting remote boot
  • Supports ACPI, PCI power management
  • Contain two large independent receive and transmit FIFOs
  • One STP/UTP connector
  • Provides LEDs to indicate network Link/Activity/Speed/Duplex
  • Plug and Play

    Standards and Protocols
    IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
    CSMA/CD, TCP/IP, PCI Revision 2.1/2.2
    Interface
    32-bit PCI
    Transmission Rate
    10/100Mbps for Half-Duplex mode
    20/200/2000Mbps for Full-Duplex mode
    Flow Control
    IEEE 802.3x Flow Control (Full-Duplex)
    Jumbo Frame
    7680Bytes
    Port
    10/100/1000Mbps RJ45
    Slot
    1 BOOTROM slot
    Network Media
    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100¦¸ STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100¦¸ STP (maximum 100m)
    1000Base-T: UTP category 5, 5e cable (maximum 100m)
    LED Indicator
    1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex
    Safety & Emission
    FCC, CE
    Environment
    Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)
    Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    Operating System
    Windows 95/98/ME/NT4.0/2000/2003/XP/Vista, Netware, Linux
