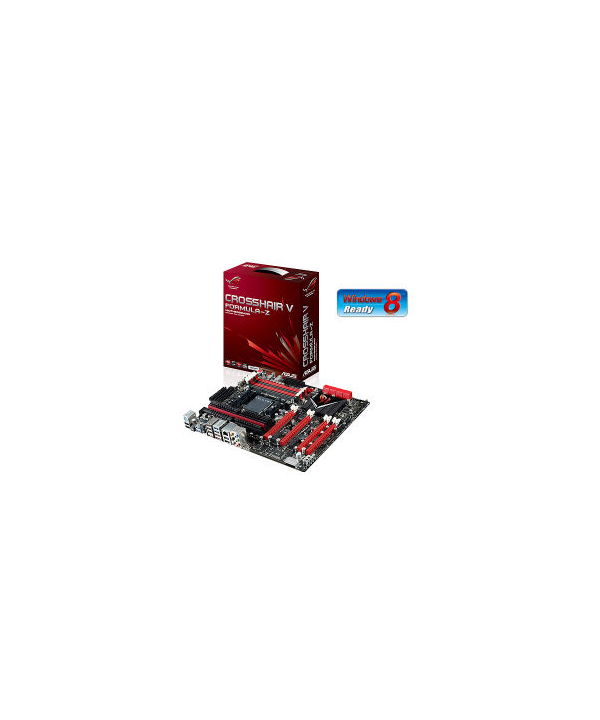

ASUS - CROSSHAIR V Formula-Z DDR3 - SOCKET AM3+
#AMB271 - 90-MIBJ70-G0EAY0VZ
Nuovo
CROSSHAIR V Formula-Z (AMD 990FX) - SOCKET AM3+
| CPU | AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors Supports AM3+ 32 nm CPU Supports CPU up to 8 cores Supports CPU up to 140 W AMD Cool 'n' Quiet™ Technology |
| Chipset | AMD 990FX/SB950 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| System Bus | Up to 5.2 GT/s HyperTransport™ 3.0 |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | 3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) 1 x PCIe 2.0 x16 (x4 mode) 2 x PCIe 2.0 x1 |
| Storage | AMD SB950 controller : 6 x SATA 6Gb/s port(s), red Support Raid 0, 1, 5, 10 ASMedia® ASM1061 controller : 2 x SATA 6Gb/s port(s), red 2 x eSATA 6Gb/s port(s), red |
| LAN | Intel®, 1 x Gigabit LAN Controller(s) |
| Audio | SupremeFX III built-in 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - SupremeFX Shielding™ Technology - 1500 uF Audio Power Capacitor - Gold-plated jacks - Blu-ray audio layer Content Protection - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel |
| USB Ports | ASMedia® USB 3.0 controller : 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) AMD SB950 controller : 12 x USB 2.0 port(s) (8 at back panel, black+white, 4 at mid-board) |
| Overclocking Features | ROG Connect : - RC Diagram - RC Remote - RC Poster - GPU TweakIt Extreme Engine Digi+ II : - 8 + 2 phase power design - 2 -phase Memory power design UEFI BIOS features : - ROG BIOS Print - GPU.DIMM Post GameFirst iROG Extreme Tweaker Overclocking Protection : - COP EX (Component Overheat Protection - EX) - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features | ASUS Power Design : - ASUS EPU TurboV Core Unlocker ASUS Exclusive Features : - AI Suite II - Ai Charger+ - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 2 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 8 x USB 2.0 (one port can be switched to ROG Connect) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Clear CMOS button(s) 1 x ROG Connect On/ Off switch(es) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 2 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 3 x Optional Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x DirectKey Button(s) 1 x DRCT header(s) 8 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Power-on button(s) 1 x Reset button(s) 1 x Go Button(s) |
| Accessories | User's manual I/O Shield 6 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x SLI bridge(s) 1 x CrossFire cable(s) 1 x Q-connector(s) (2 in 1) 1 x ROG Connect cable(s) 1 x 12 in 1 ROG Cable Label(s) |
| BIOS | 64Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a, Multi-Language BIOS |
| Manageability | WOL by PME, WOR by PME, PXE |
| Support Disc | Drivers GameFirst II Kaspersky® Anti-Virus DAEMON Tools Pro Standard ROG CPU-Z ASUS WebStorage ASUS Utilities (AI SUITE II/TurboV EVO/ASUS Update) |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
