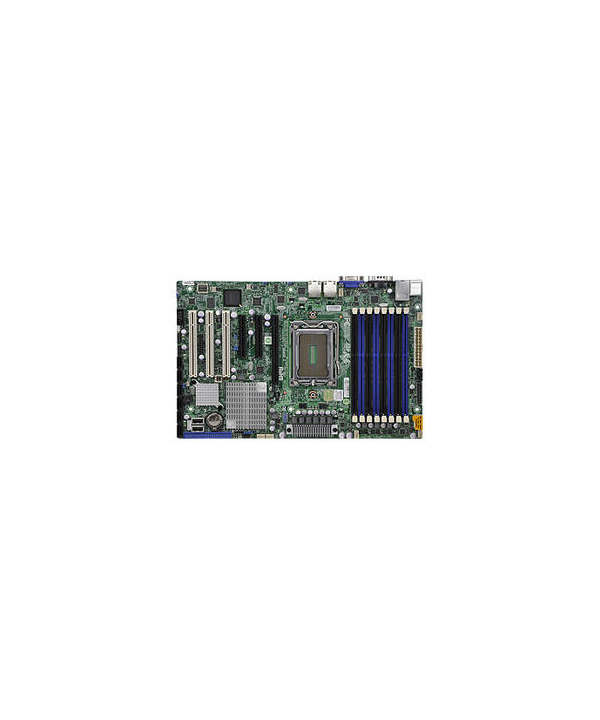

H8SGL-F SR5650 Opteron 6000 DDR3 Socket G34

SUPERMICRO - H8SGL-F SR5650 Opteron 6000 DDR3 Socket G34

#SPR023 - H8SGL-F

Nuovo

H8SGL-F SR5650 Opteron 6000 Socket G34 Extended-ATX

Maggiori dettagli

Disponibilità: Prodotto Esaurito

Product SKUs

MBD-H8SGL-F
  • H8SGL-F (Standard Retail Pack)

Physical Stats

Form Factor
  • ATX Form
Dimensions
  • 12" x 8" (30.5cm x 20.3cm)

Processor/Chipset

CPU
  • Single 1944-pin Socket G34
  • Supports one 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors
  • HT3.0 Link support
Chipset
  • AMD chipset SR5650 + SP5100

System Memory

Memory Capacity
  • Eight DIMM sockets
  • Supports up to 256GB Registered ECC or 64GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 8 DIMMs
  • Quad channel memory bus
  • See Detailed Memory Support Matrix
Memory Type
  • DDR3 1600/1333/1066 MHz Registered ECC SDRAM or Unbuffered ECC/non-ECC 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.35V or 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
  • AMD SP5100 (RAID 0, 1, 10)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • Winbond® WPCM450 BMC
Network Controllers
  • Two Intel® 82574L controller, Dual-Port Gigabit Ethernet
  • 10/100/1000BASE-T support
VGA
  • Matrox G200 16MB DDR2
Super I/O
  • Winbond® W83527 chip

Input / Output

SATA
  • 6x SATA2.0 (3Gb/s) Ports
LAN
  • 2 RJ45 LAN ports
  • 1 RJ45 Dedicated LAN supports IPMI
USB
  • 8x USB 2.0 ports
  • 2x Rear, 2x header(4x ports), and 2x TypeA
VGA
  • 1x VGA port
Keyboard / Mouse
  • PS/2 keyboard and mouse ports
Serial Ports
  • 1x Fast UART 16550 serial port
  • 1x serial port header
Others
  • 1 SATA DOM power connector, TPM header

Expansion Slots

PCI-E/PCI
  • 1 PCI-E 2.0 x8 (in x16 slot)
  • 1 PCI-E 2.0 x8
  • 1 PCI-E 2.0 x4 (in x8 slot)
  • 3 PCI
BIOS Type
  • 16Mb SPI Flash ROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 2.0
  • USB Keyboard Support
  • SMBIOS 2.3

Management

Software
Power Configurations
  • ACPI Power Management
  • Wake-On-LAN (WOL) header
  • Keyboard Wakeup from Soft-Off
  • Power-on mode control for AC power loss recovery

PC Health Monitoring

CPU
  • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, VBAT, HT, memory, chipset
  • CPU switching voltage regulator
FAN
  • Up to 6-fan status tachometer monitoring
  • Up to six 4-pin fan headers
  • Status monitor for speed control
  • 3-pin fan support (w/o speed control)
  • Low noise fan speed control
     (4-pin fan only)
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 6x Fan connectors
  • I2C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
  • +5V Standby Alert LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header

Operating Environment / Compliance

RoHS
  • RoHS Compliant 6/6, Pb Free
Environmental Specifications
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
