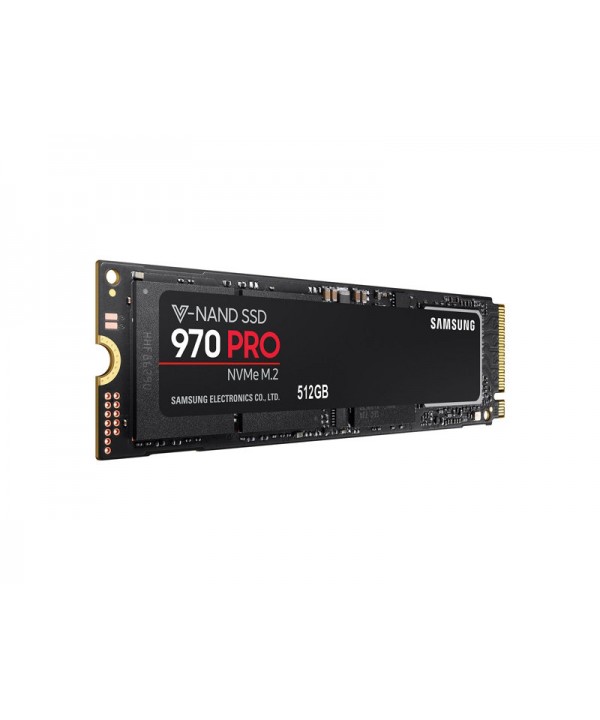

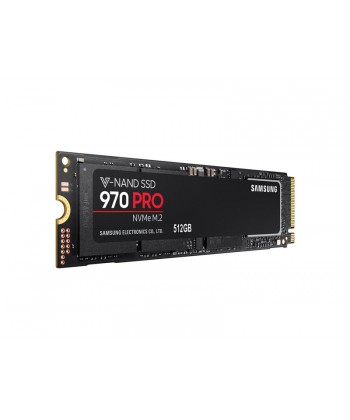

SAMSUNG - 512GB 970 Pro SSD NVMe M.2

Series

SSD 970 PRO

Usage Application

Client PCs

Interface

PCIe Gen 3.0 x4, NVMe 1.3

Capacity

512GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Sequential Read Speed

Up to 3,500 MB/s * Performance may vary based on system hardware & configuration

Sequential Write Speed

Up to 2,300 MB/s * Performance may vary based on system hardware & configuration

Random Read Speed

Random Read (4KB, QD32): Up to
370,000 IOPS Random Read

Random Read (4KB, QD1): Up to
15,000 IOPS Random Read

*Performance may vary based on system hardware & configuration

Random Write Speed

Random Write (4KB, QD32): Up to
500,000 IOPS Random Write

Random Write (4KB, QD1): Up to
55,000 IOPS Random Write

* Performance may vary based on system hardware & configuration

Controller

Samsung Phoenix Controller

NAND Flash

Samsung V-NAND 2-bit MLC

Trim Support

Supported

AES Encryption

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

S.M.A.R.T. Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Device Sleep Mode Support

Yes

Internal Storage

Yes

Temperature proof

Yes

Gaming SSDs

Yes

Average Power Consumption (system level)

*Average: 5.2 W
*Maximum: 8.5 W (Burst mode)
*Actual power consumption may
vary depending on system
hardware & configuration

Power consumption (Idle)

Max. 30 mW
*Actual power consumption may
vary depending on system
hardware & configuration

Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70 ℃ Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

Product

M.2 (2280)

Product

3.16" x 0.09" x 0.87"

Product

Max 0.28oz.

Management SW

Magician Software for SSD management

5-Year Limited Warranty or 600 TBW Limited Warranty
