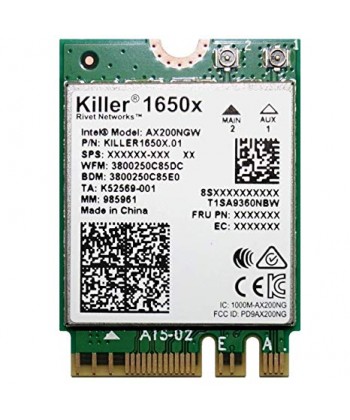

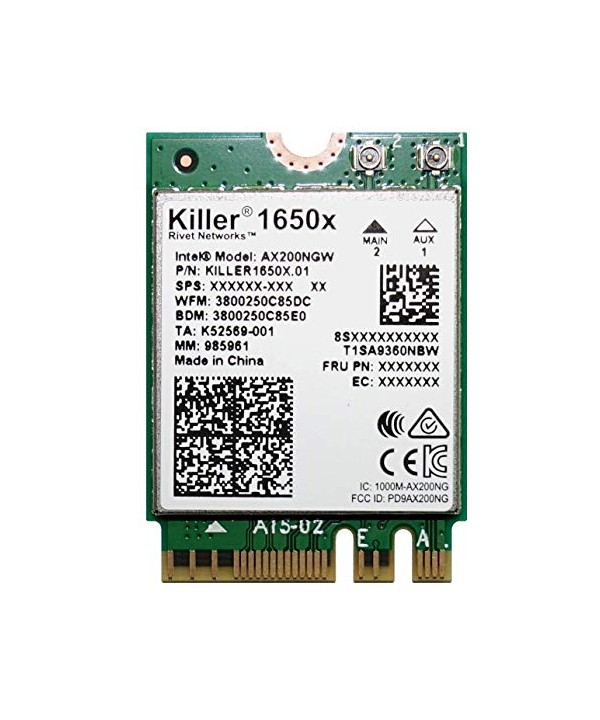

INTEL - Killer AX1650 WiFi- 6 Gaming + Bluetooth 5.0 M.2

Overview:

• 2×2 Wi-Fi 6 (11ax) module
• 160MHz Channel Support
• UL and DL OFDMA
• Bluetooth 5.0
• Chipset: Intel
• Module Options:
  • AX1650x: M.2, module size = 22mm x 30mm
  • AX1650i: M.2, module size = 22mm x 30mm (leverages integrated MAC)
  • AX1650w: M.2, module size = 12mm x 16mm soldered down
  • AX1650s: M.2, module size = 12mm x 16mm soldered down (leverages integrated MAC)
• Operating Systems:  Microsoft Windows 10
• Worldwide Regulatory Support

Network Standards

• WLAN Frequency Band:  2.4/5 GHz
• Pre-Certified Wi-Fi 6 (11ax)
• Wi-Fi Certified a,b,g,n,ac with wave 2 features, WMM, WMM-PowerSave, WPA, WPA2, WPS2, PMF, Wi-Fi Direct, Wi-Fi Miracast, Wi-Fi Agile Multiband, Wi-Fi Optimized Connectivity, Wi-Fi Location, Passpoint, Wi-Fi Aware, and Wi-Fi TimeSync

Security

• Security Methods:  WPA and WPA2 Personal and Enterprise; WPA3 (pending OS support)
• Authentication Protocols:  1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0-MSCHAPv2 (EAP-SIM, EAP-AKA)
• Encryption: 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 256-bit AES-GCMP
• Wi-Fi Direct Encryption and Authentication:  WPA2-PSK, AES-CCMP
