* The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.
* Refer to www.asus.com for CPU support list
Supports Intel® 14 nm CPU
Supports Intel® Virtual RAID on CPU (VROC)
Supports Intel® Turbo Boost Max Technology 3.0
Intel® Socket 2066 Core™ X-Series Processor 79xx, 78xx Series Processors

Build in Intel® X299

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/4133(O.C.)/4200(O.C.)/3200(O.C.)/3333(O.C.)/2133/3733(O.C.)/2800(O.C.)/2400(O.C.)/4000(O.C.)/3300(O.C.)/2666(O.C.)/3000(O.C.)/3866(O.C.) MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture

Supports NVIDIA® 4-Way SLI™ Technology *
Supports AMD 4-Way CrossFireX Technology *
Supports AMD 3-Way CrossFireX™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 2-Way CrossFireX Technology
* 28-LANE CPUs can only support up to 3-Way SLI™/ 3-Way CrossFireX™

* The PCIE_X8_4 slot shares bandwidth with M.2_2(DIMM.2)
1 x PCIe 3.0 x4
4 x PCIe 3.0 x16 (x16, x16/x16, x16/x0/x16/x8, or x16/x8/x8/x8 mode with 44-LANE CPU; x16, x16/x8 orx8/x8/x8 mode with 28-LANE CPU) *
* When M.2_2(DIMM.2) is populated, PCIEx8_4 runs at x4 mode

, 1 x U.2 port, support PCIe 3.0 x4 NVM Express storage
Supports Intel® Smart Response Technology
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
6 x SATA 6Gb/s port(s),
Intel® Rapid Storage Technology 15 support
Support Raid 10, 5, 1, 0
Intel® X299 Chipset :
Intel® Optane™ Memory Ready

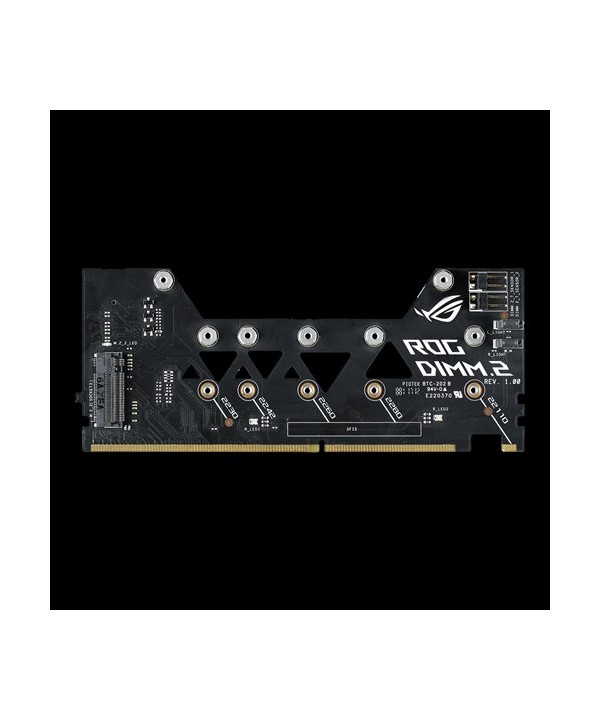

1 x ROG DIMM.2 Module support(CPU_DIMM.2), M.2 X4 with M Key design, type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only)*1
Intel® Core™ X-series Processors (6-core above) :
1 x ROG DIMM.2 Module support(PCH_DIMM.2), M.2 X4 with M Key design, type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only)*2

Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Aquantia AQC-107 10G
ROG GameFirst Technology
Anti-surge LANGuard

Supports dual band frequency 2.4/5 GHz
Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad
Supports MU-MIMO
Up to 4600Mbps transfer speed

Bluetooth V4.1

- SupremeFX Shielding Technology
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- ESS®SABRE9018Q2C DAC/AMP
- Supports : Front Panel Jack-retasking, Multi-streaming, Jack-detection
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
113 dB and SNR stereo playback output 120 dB - High quality SNR recording input

ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)
ASMedia® USB 3.1 Gen 1 controller :
8 x USB 3.1 Gen 1 port(s) ( at back panel, )
Intel® X299 Chipset :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
Intel® X299 Chipset : *3
2 x USB 2.0 port(s)

Clear CMOS button
Start Button
UEFI BIOS features :
- Tweakers' Paradise
- Graphic Card Information Preview
- ROG SSD Secure Erase
- GPU.DIMM Post
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
ReTry Button
ProbeIt
KeyBot II
- Power On
- One-click Overclocking
- X.M.P.
- ClrCMOS
- DirectKey
GameFirst IV
ROG CloneDrive
ROG CPU-Z
Reset Button
Pre-mounted I/O Shield
LN2 Mode
Safe Boot Button
ROG Aura
- Aura RGB Strip Headers
- Aura Lighting Control
ROG RAMCache II
MemOK! Button
Overwolf

Gamer's Guardian:
- 10K Black Metallic Capacitors
- SafeSlot
- Stainless Steel Back I/O
Performance Optimization :
- AI Suite 3
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
- GPU Boost
- DIGI + VRM
Digi+VRM
LiveDash OLED
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
ASUS Wi-Fi GO!

ASUS Q-Design :
- ASUS Q-LED (DRAM, Boot Device LED, VGA, CPU)
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-Connector
SafeDIMM slot
OC Design - ASUS PRO Clock II Technology
Turbo App
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4
ASUS Exclusive Features :
- Ai Charger
- USB 3.1 Boost
- AI Suite 3

1 x Clear CMOS button(s)
1 x LAN (RJ45) port(s)
8 x USB 3.1 Gen 1
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1)
2 x USB 3.1 Gen 2
5 x LED-illuminated audio jacks

1 x H_AMP fan connector
1 x USB 3.1 Gen 2 front panel connector
1 x 8-pin EATX 12 V Power connector
1 x ProbeIt Measurement Points
1 x Safe Boot button
1 x W_OUT header
1 x ReTry button
2 x T_Sensor Connector
1 x LN2 Mode jumper(s)
1 x 4-pin EATX 12 V_1 Power connector(s)
1 x W_PUMP+ 1
1 x 24-pin EATX Power connector(s)
1 x CPU Fan connector(s)
1 x U.2 port
1 x Front panel audio connector(s) (AAFP)
1 x System panel connector
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM connector(s)
1 x WB_SENSOR
1 x W_PUMP+ 2
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Slow Mode switch(es)
1 x Start button
1 x W_IN header
1 x Aura Addressable Strip Header(s)
3 x Chassis Fan connector(s)
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x CPU OPT Fan connector(s)
1 x ROG extension (ROG_EXT) header(s)
1 x VROC_HW_Key
1 x Thunderbolt header(s)
6 x SATA 6Gb/s connector(s)
1 x BIOS Switch button(s)
1 x PCIe x16 lane switch
1 x Aura RGB Strip Headers
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x W_FLOW header

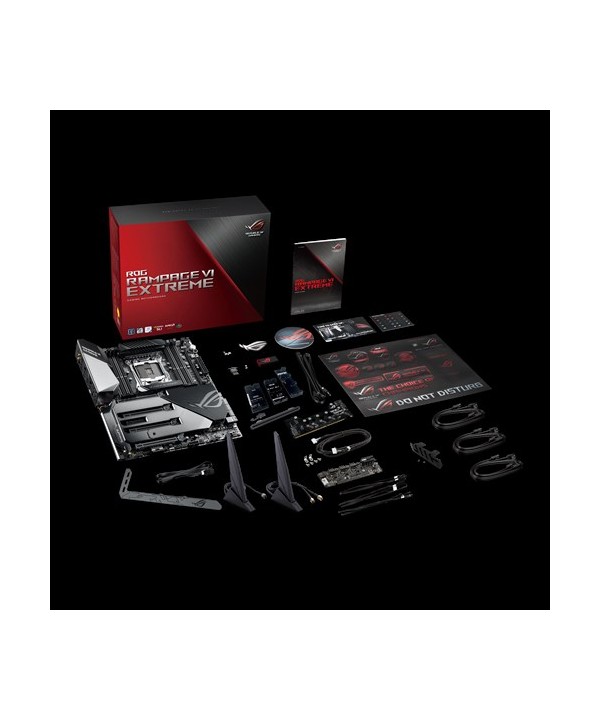

1 x 4-Way SLI bridge(s)
1 x MOS fan bracket kit
1 x ROG DIMM.2 Fan Stand Pack (s)
1 x ASUS WiGig 802.11ad moving antenna *4
1 x SLI HB BRIDGE(2-WAY-L)
1 x Fan Extension card cable
1 x 3-Way SLI bridge(s)
1 x ROG coaster(s)
6 x SATA 6Gb/s cable(s)
1 x 10-in-1 ROG cable label
3 x Thermistor cable(s)
1 x ROG big sticker
1 x ROG VGA Holder
1 x Fan Extension Card (3 x 4-pin fan out)
1 x Fan Extension card screw pack
1 x ROG logo plate sticker
3 x M.2 Screw Package
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Q-Connector
User's manual

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

WfM 2.0, WOL by PME, PXE

Windows® 10 64-bit

Extended ATX Form Factor
12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

*1 When M.2_1(DIMM.2) comes from CPU, it will be shared with U.2
*2 When M.2_1(DIMM.2) comes from PCH, It will be shared withPCIex4slot.
*3 1 x USB 2.0 header support additional 2 x USB 2.0 ports [one connector via ROG_EXT header]
*4 Wi-Fi 802.11ad(WiGig) is only available in certified countries
