ASUS - Rampage VI Extreme Encore Quad M.2 DDR4 Socket 2066

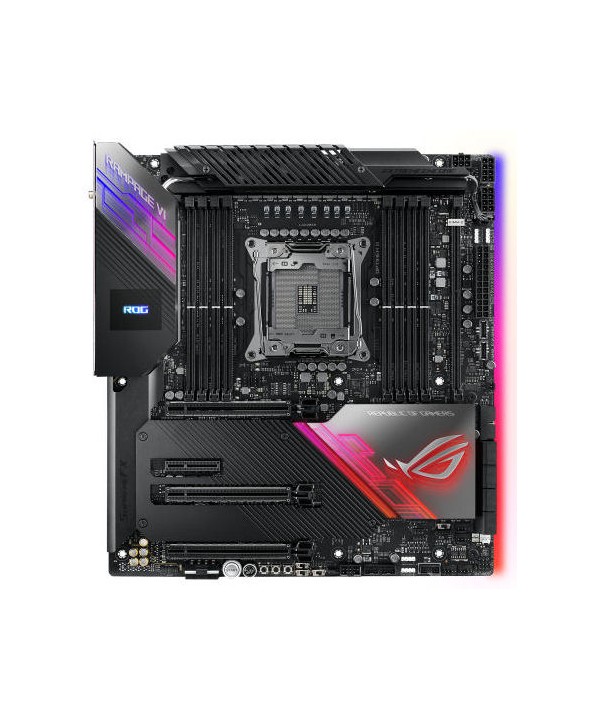

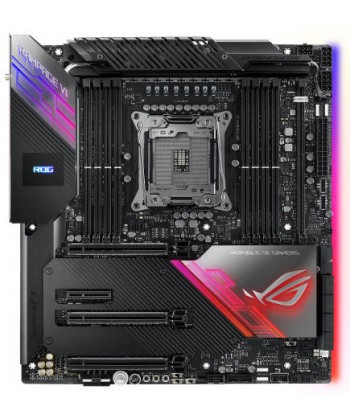

ASUS - Rampage VI Extreme Encore WiFi Quad M.2 DDR4 Extended-ATX Socket 2066

#AMB761 - 90MB11K0-M0EAY0

Nuovo

Alimentazione a 16 fasi

10Gb Lan

4 Slot M.2

WiFi 6 + Bluetooth 5

Maggiori dettagli

Disponibilità: Prodotto Esaurito

CPU

Optimized for Intel® Core™ X-Series 10000 Processor Family
Intel® Socket 2066 Core™ X-Series Processors
Supports Intel® Virtual RAID on CPU (VROC)
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Max Technology 3.0
* The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® X299

Memoria

8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (6-core above)
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Supporto Multi-GPU

Supports AMD 2-Way CrossFireX Technology
Supports NVIDIA® 3-Way SLI® Technology
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology

Slot di Espansione

3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2
(Intel® Core™ i7 7000 X-Series CPU)
3 x PCIe 3.0 x16 (x16/x8/x4 mode)
1 x PCIe 3.0 x4 *3
3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *1
48-Lane CPU-
44-Lane CPU-
28-Lane CPU-
Intel® X299 Chipset

Storage

1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*5
Intel® X299 Chipset :
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
Intel® Core™ X-Series Processors Family :
Intel® Rapid Storage Technology Enterprise supports
8 x SATA 6Gb/s port(s)

LAN

Intel® I219V
Aquantia AQC-107 10G
Anti-surge LANGuard
ROG GameFirst Technology

Wireless Data Network

Intel® Wi-Fi 6 AX200
Up to 2.4Gbps transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

Bluetooth® 5.0

Audio

- Supports up to 32-Bit/192kHz playback *6
- ESS®SABRE9018Q2C DAC/AMP
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
ROG SupremeFX8-Channel High Definition Audio CODEC S1220
- DTS® Sound Unbound
- Sonic Studio III + Sonic Studio Virtual Mixer
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- SupremeFX Shielding Technology
- Sonic Radar III
Audio Feature :
- Optical S/PDIF out port(s) at back panel

Porte USB

Rear USB Port
1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s)
(1 x Type-C)
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)
(1Type-A +1Type-C)
8 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
(8 x Type-A)
(1 x Type-A)
Front USB Port
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s)
1 x USB 2.0 port(s)

Caratteristiche Overclock

- FlexKey Button
- EZ Plug
Clear CMOS button
ProbeIt
ROG DIMM.2 module with heatsink
ROG Aluminum heatsink cover
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- OptiMem III
- Safe Boot button
- Slow Mode
- LN2 Mode
- Mem Tweakit
- RAMDisk
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
- Overwolf

Caratteristiche Speciali

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
AI Overclocking
Armoury Crate
LiveDash OLED 1.77”
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- ASUS C.P.R.(CPU Parameter Recall)
- ASUS Q-Connector
- USB BIOS Flashback®
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

Porte I/O Posteriori

1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C)
8 x USB 3.2 Gen 1 (up to 5Gbps) ports
2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
1 x USB 2.0
5 x LED-illuminated audio jacks
1 x Aquantia AQC-107 10G LAN port
1 x Clear CMOS button(s)
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi Module
Anti-surge LAN (RJ45) port
1 x Optical S/PDIF out

I/O Interne

2 x USB 3.2 Gen 2 front panel connector
1 x FS Mode switch
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
1 x FlexKey button
1 x HS_FAN
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x W_PUMP+ 1
1 x W_PUMP+ 2
1 x VROC_HW_Key
2 x 8-pin EATX 12V Power connectors
1 x 6-pin EZ_PLUG Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
10 x ProbeIt Measurement Points
2 x T_Sensor Connector
1 x PAUSE Switch
1 x WB_SENSOR
2 x Aura Addressable Strip Header(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x BIOS Switch button(s)
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x RSVD Switch
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
2 x Aura RGB Strip Headers
1 x H_AMP fan connector
1 x Slow Mode switch(es)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x Node Connector(s)
1 x System panel connector
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)

Accessori

1 x USB 3.2 Gen 1 Header to USB 2.0 adapter cable
1 x ROG Multi-Bit screwdriver
1 x 2-in-1 Rubber pad
3 x M.2 Screw Package
1 x ROG DIMM.2 with heatsink
1 x M.2 Pad for ROG DIMM.2
6 x SATA 6Gb/s cable(s)
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
1 x ROG Logo Sticker(s)
3 x Thermistor cable(s)
1 x USB drive with utilities and drivers
1 x ROG weave SATA 6G cable
1 x Q-Connector
1 x ROG coaster(s)
1 x ROG logo plate sticker
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
User´s manual

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Gestibilità

WfM 2.0, WOL by PME, PXE

Disco di Supporto

Overwolf Daemon Tools Software WinRAR Anti-virus software (1-year full subscription)

Sistema Operativo

Windows® 10 64-bit

Dimensioni Scheda

Extended ATX Form Factor
30.5 cm x 27.7 cm

Note

*1 When the PCIe runs x16/x16/x8 mode, DIMM.2_2 will be disabled. *2 When PCIe runs x16/x16/x4 mode, DIMM.2_2 will be disabled. *3 The PCIe 3.0 x4 slot shares bandwidth with M.2_2. *4-1 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x8 mode on 48-Lane CPU. *4-2 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x4 mode on 44-Lane CPU. *4-3 DIMM.2 will be disabled when using 28-Lane CPU. *5 The PCIe 3.0 x4 slot shares bandwidth with M.2_2. *6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *7 USB 3.2 Gen 2x2 will be disabled when using 28-Lane CPU.
