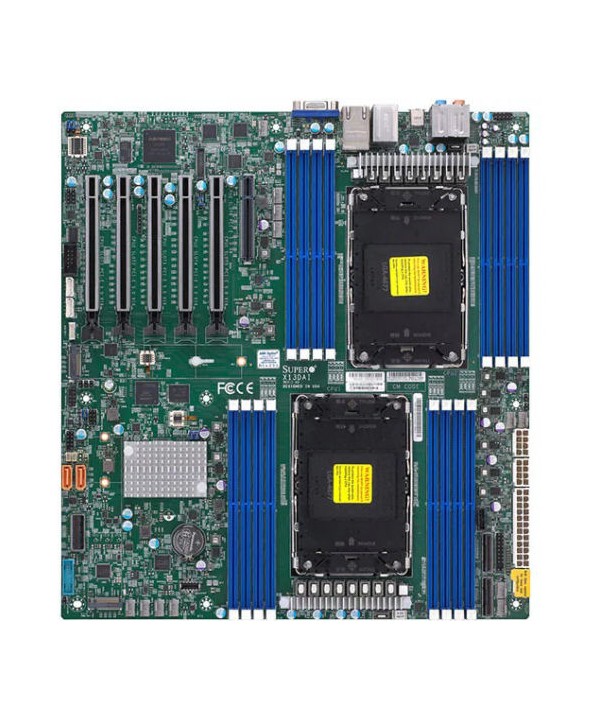

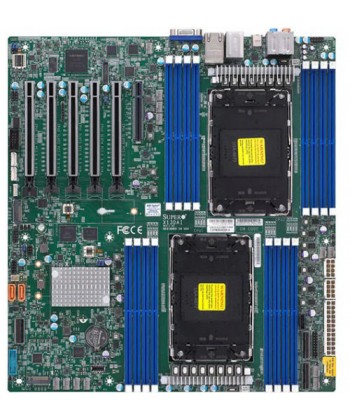

SUPERMICRO - X13DAi-N Dual Xeon 4Gen DDR5-ECC Dual M.2 Extended-ATX EEB Socket 4677

SUPERMICRO - X13DAi-N Dual Xeon 4Gen DDR5-ECC Dual M.2 Extended-ATX EEB Socket 4677

#SPR048 - X13DAI-T

Nuovo

Supporta Processore Intel Scalable Xeon 4Gen

Maggiori dettagli

Disponibilità: Prodotto Esaurito

  1. th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
  2. Support CXL
  3. Intel® C741 Chipset
  4. Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM slots
  5. Broadcom BCM57416 Dual ports 10G LAN
  6. 2 SATA DOM ports
  7. 2 M.2
  8. 4 NVMe ports PCIe 5.0 x4 via 2 MCIO connectors
  9. HD Audio 7.1
  10. 8 SATA 3.0 ports(C741)
  11. 1 USB 3.2 Gen 2, 8 USB3.2 Gen 1 and 1 USB 2.0
  12. 5 PCIe 5.0 x16
  13. 1 PCIe 5.0 x8


    Physical Stats
    Form Factor
    • EATX EEB
    Dimension
    • 30.734cm x 33.274cm
    Processor
    CPU
    • 4th Gen Intel® Xeon® Scalable processors
    • Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
    Core
    • Up to 60 cores
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
    Memory Type
    • 4800/4400/4000MHz ECC DDR5 RDIMM (3DS) 256GB 4800MHz
    DIMM Sizes
    • 16GB, 32GB, 64GB, 128GB, 256GB
    • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C741
    SATA
    • Intel® C741 controller for 8 SATA3 ports; RAID N/A
    • Intel® C741 controller for 2 SATA3 ports; RAID N/A
    Audio
    • 1x Realtek ALC888S 7.1 HD Audio port(s)Realtek ALC888S 7.1 HD Audio
    Network Controllers
    • Dual LAN with Broadcom BCM57416 10GBase-T
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port(s)
    • 2 SATA3 (6Gbps) port(s)
    USB
    • 1 USB 3.2 Gen2 port(s) (1 via header)
    • 8 USB 3.2 Gen1 port(s) (4 rear type A; 2 via header; 2 via header)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    TPM
    • 1 TPM Header
    Others
    • 2 MCIO PCIe 5.0 x8
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x8,
    • 5 PCIe 5.0 x16
    M.2
    • M.2 Interface: 2 PCIe 5.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI 32MB AMI UEFI
    BIOS Features
    • ACPI 6.4
    • SMBIOS 2.8/3.5
    • UEFI 2.8A
    • Plug and Play (PnP)
    • PCI FW 3.2
    Management
    Software
    • SuperDoctor® 5, SPM, SUM, SSM, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, Watchdog, SMCIPMITool, Trusted Platform Module (TPM), CPU thermal trip support for processor protection, Wake-on-LAN
    PC Health Monitoring
    Voltage
    • +5V standby, +5V, +3.3V, +12V, +3.3V standby, Vmem
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • peripheral temperature
    • System temperature
    • Memory temperature
    • CPU temperature
    • PCH temperature
    • Veore
    • Platform Environment Control Interface (PECI)/(TSI)
    FAN
    • 13x 4-pin fan headers (up to 13 fans)
    • Fan speed control, Overheat LED indication, CPU thermal trip support, 13x fans with tachometer monitoring, Thermal Monitor 2 (TM2) support, PECI, Monitoring for CPU and chassis environment
    Other Features
    • Node Manager Support
    • M.2 NGFF connector
    • Control of power-on for recovery from AC power loss
    • Chassis intrusion detection
    • ACPI power management
