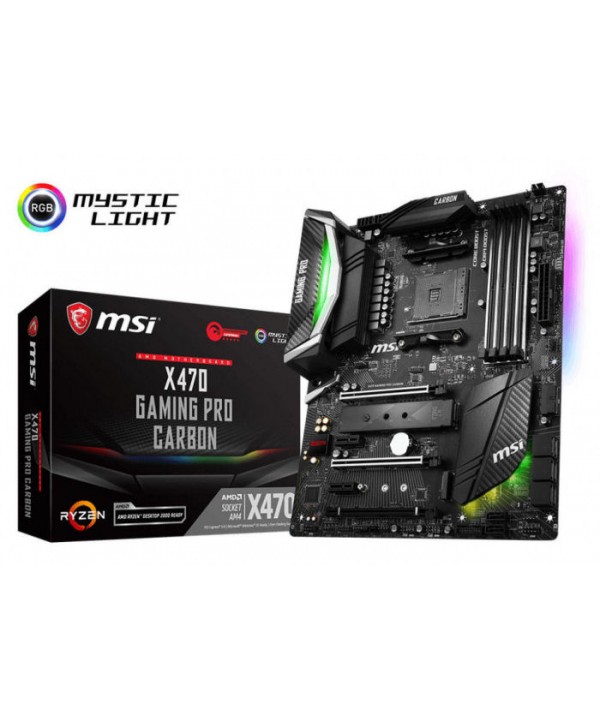

MSI - X470 Gaming Pro Carbon DDR4 M.2 Socket AM4

PROCESSOR

Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4

CHIPSET

AMD® X470 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)

1. A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

SLOTS

• 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_3)
  • Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
  • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/ Athlon™ X4 processors support x8/x0 mode
  • AMD® Athlon™ with Radeon™ Vega Graphics processors support x4/x0 modes
• 1 x PCIe 2.0 x16 slot (PCI_E5, supports x4 mode)
• 2 x PCIe 2.0 x1 slots

1. PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

MULTI-GPU

• Ryzen™ Desktop Processors
  • Supports 3-Way AMD® CrossFire™ Technology
  • Supports 2-Way NVIDIA® SLI™ Technology
• Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
  • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® X470 Chipset

• 8 x SATA 6Gb/s ports
• 2 x M.2 ports (Key M)
  • M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

1. SATA3 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
2. PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

RAID

AMD® X470 Chipset

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for NVMe storage devices

ONBOARD GRAPHICS

• 1 x DisplayPort, support a maximum resolution of 4096x2160 @60Hz
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz

1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2. Maximum shared memory of 2048 MB

USB

AMD® X470 Chipset

• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

• 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel® I211AT Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 8 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 2 x 5050 RGB LED strip 12V connectors (JRGB1~2)
• 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
• 1 x CORSAIR connector (JCORSAIR1)

BACK PANEL PORTS

DIMENSIONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit
