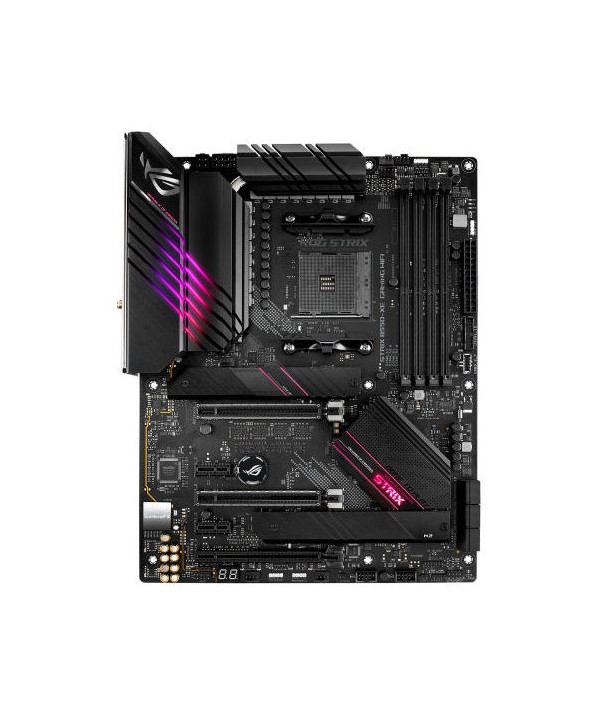

ASUS - ROG Strix B550-XE Gaming WiFi DDR4 Dual M.2 - Socket AM4

ASUS - ROG Strix B550-XE Gaming WiFi DDR4 Dual M.2 ATX - Socket AM4

#AMB765 - 90MB17B0-M0EAY0

Nuovo

Alimentazione a 16+2 fasi

2 Slot M.2

2.5Gb Lan + WiFi + Bluetooth

Maggiori dettagli

Disponibilità: Prodotto Esaurito

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
* Refer to www.asus.com for CPU support list

Chipset

AMD B550

Memory

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
AMD Ryzen™ 4000 G-Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
OptiMem II
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

1 x HDMI 2.1(4K@60HZ)
1 x DisplayPort 1.2
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor

Multi-GPU Support

Supports NVIDIA 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
2 x PCIe 3.0 x1
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)

Storage

AMD Ryzen™ 4000 G-Series Desktop Processors :
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
Support Raid 0, 1, 10
6 x SATA 6Gb/s port(s),

LAN

Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard

Wireless Data Network

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

- Rear audio USB Type-C® port
- Audio Shielding
ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
- Premium Japanese audio capacitors
- Audio Cover
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shielding™ Technology

USB Ports

3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C®)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
4 x USB 2.0 port(s)(4 x Type-A)
Rear USB Port ( Total 8 )
Front USB Port ( Total 7 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)

Software Features

ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync Ai noise cancelling microphone AI Suite 3: - 5-way Optimization TPU EPU DIGI+ VRM Fan Xpert 4 Turbo APP - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey

ASUS Special Features

Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS Flashback™ button -BIOS FlashBack™ LED -Clear CMOS header -Procool -Pre-mounted I/O shield - SafeSlot Rear audio USB Type-C® connector

Back I/O Ports

3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®)
5 x USB 2.0 (1 for audio USB Type-C®)
1 x BIOS FlashBack™ Button(s)
1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Internal I/O Ports

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x Q-Code
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)

Accessories

1 x Hyper M.2 x16 Gen 4 Card
5 x M.2 SSD screw package(s)
3 x M.2 Rubber Package(s)
1 x ROG audio USB Type-C® cable
1 ROG key chain
1 x Wi-Fi moving antenna
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG Thank you card

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2 ** When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled. ´* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.
