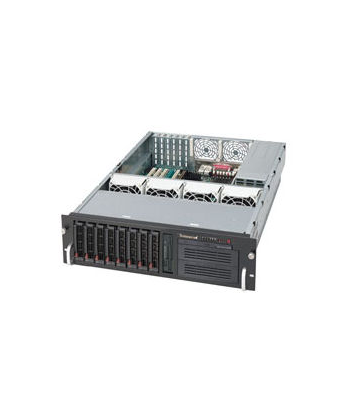

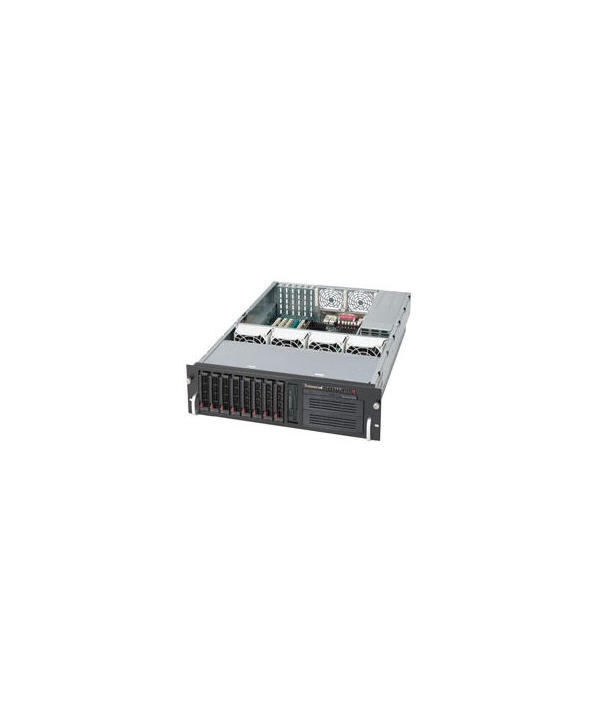

CSE-833T-650B Case Rack 3U 650W Extended-ATX

SUPERMICRO - CSE-833T-650B Case Rack 3U 650W Extended-ATX

#SPR009 - CSE-833T-650B

Nuovo

CSE-833T-650B Case Rack 3U 650W Extended-ATX

Maggiori dettagli

Disponibilità: Prodotto Esaurito

Product SKUs

CSE-833T-650B
  • SuperChassis 833T-650B (Black)


Form Factor

3U chassis support for max. motherboard size - 12" x 13" E-ATX


Processor Support

Supports dual, single Intel® / AMD processors

Dimensions

Height 5.2" (132mm)

Width 17.7" (450mm)

Depth 25.5" (648mm)

Gross Weight 69 lbs (31.3kg)

Available Colors Black


Expansion Slots

• 6x PCI expansion slots
• SIMLC Support Only


Drive Bays

Hot-swap • 8x 3.5" SAS / SATA Hot-swap Drive Bay
• SAS or enterprise SATA HDD only recommended

Peripheral Bay(s) • 2x 5.25" Peripheral Drive Bay
• 1x 3.5" Drive Bay
• 1x Slim CDROM Drive Bay


Peripheral Drives

Floppy Sony 3.5" 1.44MB Floppy Drive (optional)

DVD-ROM Slim DVD-ROM drive (optional)


SATA Backplane

SATA Backplane


Front Panel

Buttons • Power On/Off button
• System Reset button
• Alarm Mute Switch

LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED

Ports none (Optional front USB ports via 5.25" drive bay)
System Cooling

Fans • 4 9cm 5,000 RPM Hot-swap PWM Fans
• 2 8cm 5,000 RPM Rear Exhaust PWM Fans


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply

650W AC-DC high-efficiency power supply w/ PFC
Redundant Cooling
AC Voltage
  • 100 - 240V, 60-50Hz, 8.3 - 3.5 Amp
+5V
  • 30 Amp
+5V standby
  • 4 Amp
+12V
  • 54 Amp
-12V
  • 0.5 Amp
+3.3V
  • 25 Amp
Certification   80Plus

Regulatory (Power Supply)

Power Supply Safety / EMC • USA - UL listed, FCC
• Canada - CUL listed
• Germany - TUV Certified
• Europe/CE Mark
• EN 60950/IEC 60950-Compliant
• CCC Certification
