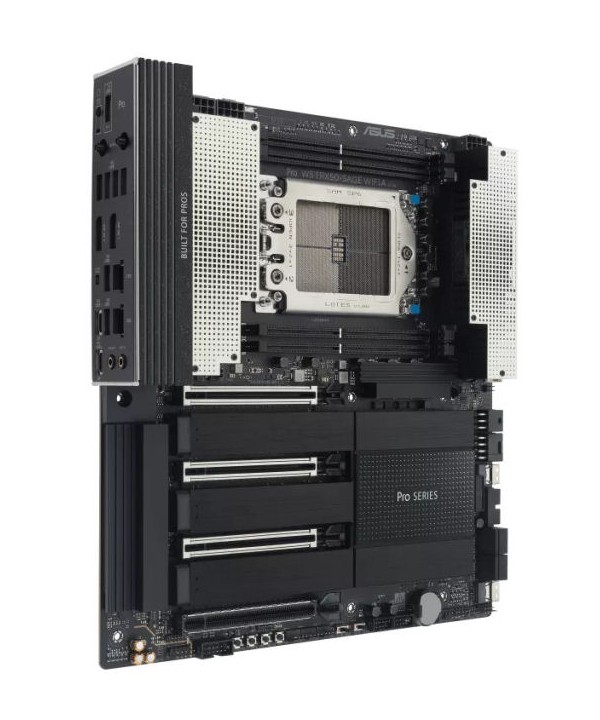

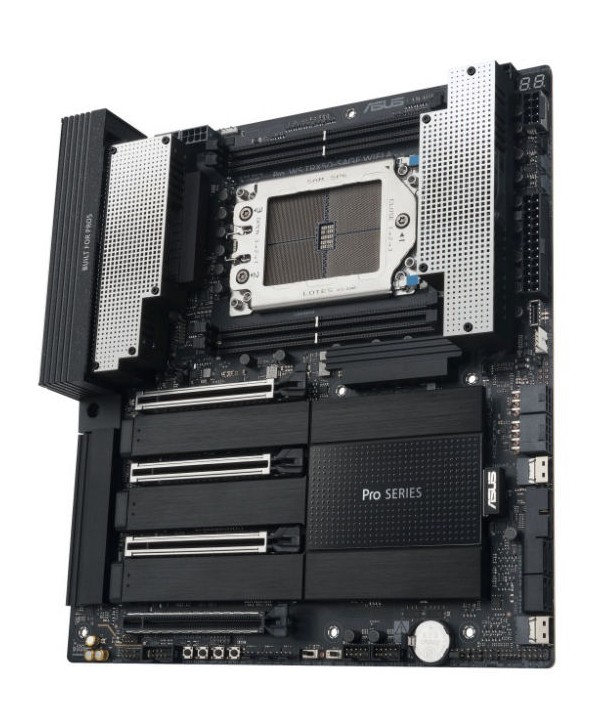

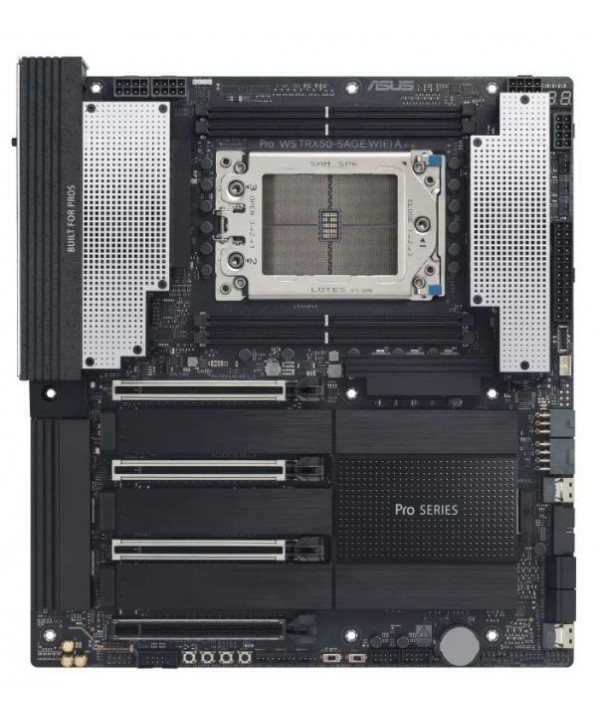

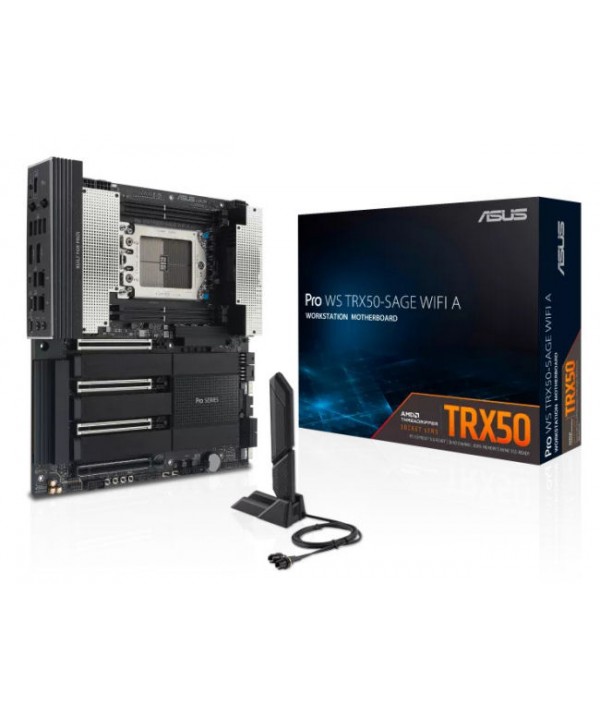

ASUS - Pro WS TRX50-SAGE WiFi A Triple M.2 ECC-D5 SSI CEB Socket sTR5
#AMB965 - 90MB1FZ0-M0EAY0
Nuovo
Disponibilità: Arrivo previsto in circa 3gg
Scheda madre di classe Workstation
3 PCI-Express 16x 5.0 + 1 4.0
3 Slot M.2 - 2 x PCIe 5.0 + 1 x PCIe 4.0
Lan 2.5 + 10GbE - WiFi 7 + Bluetooth
Per processori AMD Threadripper e Threadripper Pro serie 7000
La Pro WS TRX50‑SAGE WIFI è una scheda madre professionale in formato CEB, progettata specificamente per ambienti workstation intensivi — dall’AI training al rendering 3D, dalla simulazione scientifica al software development avanzato.
Supporta i processori AMD Ryzen Threadripper e Threadripper PRO 7000/9000 fino a 96 core, abbina fino a 1 TB di RAM DDR5 ECC Registered, dispone di connettività di rete ultraveloce e offre una gestione remota di tipo server-grade, ideale per infrastrutture professionali.
Preparata per CPU fino a 96 core con VRM 36-phase e alimentazione dual‑CPU, ideale per carichi estremi.
Workstation professionale grazie a ECC R-DIMM, BIOS e overclock CPU/RAM, supporto server-grade e 1 TB di memoria.
Connettività ultra‑veloce: PCIe 5.0, M.2 NVMe Gen5, USB 20 Gbps, Wi‑Fi 7 e rete wired fino a 10 Gb.
Gestione remota e monitoraggio con IPMI + software ASUS Control Center.
Raffreddamento serio con VRM attivi, heatpipe, M.2/heatsink chipset per piena stabilità a pieno carico.
Scenari d’Uso Ideali
AI / ML / Data Science: calcoli paralleli massivi con Threadripper PRO, GPU multipli e storage veloce.
Rendering / Video editing 8K: memoria abbondante, CPU multi-core, storage NVMe RAID e GPU accelerate.
Infrastructure / DevOps: gestibile da remoto, rete ultraveloce, espandibilità multi-GPU e storage SAS/NVMe.
Sistemi mission-critical: ECC, alimentazione stabile e components testati per uptime continuo.
Scheda Tecnica
CPU
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors **
*Refer to www.asus.com for CPU support list.
**System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete.
*Refer to www.asus.com for CPU support list.
**System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete.
Chipset
AMD TRX50 Chipset
Memory
4 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion Slots
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
3 x PCIe 5.0 x16 slots
1 x PCIe 4.0 x16 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
3 x PCIe 5.0 x16 slots
1 x PCIe 4.0 x16 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
Storage
Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and AMD Ryzen™ Threadripper™ 9000 & 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2***
4 x SATA 6Gb/s ports
SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3***
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)****
SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device****
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs
*** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa.
**** Supported when the Threadripper™ PRO series CPU is installed
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and AMD Ryzen™ Threadripper™ 9000 & 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2***
4 x SATA 6Gb/s ports
SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3***
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)****
SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device****
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs
*** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa.
**** Supported when the Threadripper™ PRO series CPU is installed
RAID Support
AMD RAIDXpert2 Technology
PCIe RAID 0/1/5/10
SATA RAID 0/1/5/10
PCIe RAID 0/1/5/10
SATA RAID 0/1/5/10
Ethernet
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® I226-LM 2.5Gb Ethernet
1 x Intel® I226-LM 2.5Gb Ethernet
Wireless & Bluetooth
"Wi-Fi 7 (Realtek® RTL8922AE)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
USB
Rear USB (Total 9 ports)
2 x USB4® (40Gbps) (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A )
1 x USB 2.0 ports (1 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)*
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
* USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
2 x USB4® (40Gbps) (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A )
1 x USB 2.0 ports (1 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)*
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
* USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
- Unique de-pop circuit
* A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
- Unique de-pop circuit
* A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

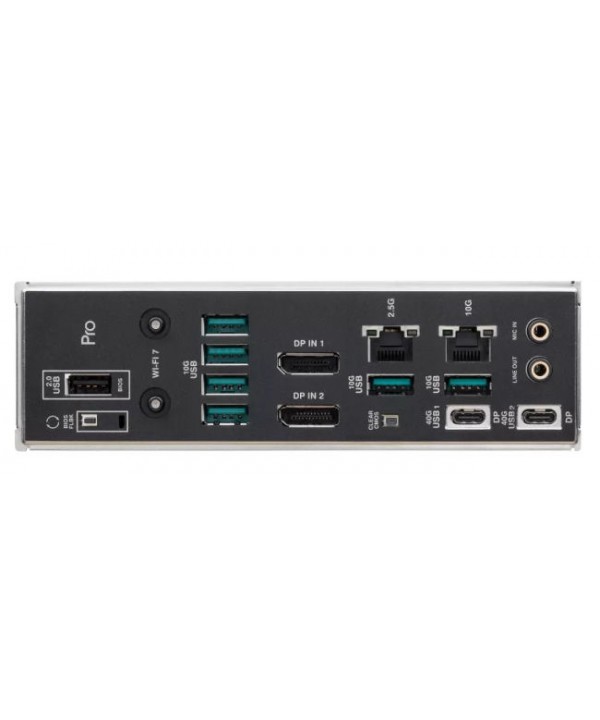

Back Panel I/O Ports
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
2 x DisplayPort IN
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
2 x DisplayPort IN
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
1 x 24-pin Main Power connectors
1 x 4-pin to 24-pin Main Power connectors
2 x 8-pin +12V CPU Power connector
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable RGB Gen 2 header
1 x BMC header
1 x COM Port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Chassis intrusion header
1 x Thermal Sensor header
7 x ProbeIt Measurement Points
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
1 x 24-pin Main Power connectors
1 x 4-pin to 24-pin Main Power connectors
2 x 8-pin +12V CPU Power connector
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable RGB Gen 2 header
1 x BMC header
1 x COM Port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Chassis intrusion header
1 x Thermal Sensor header
7 x ProbeIt Measurement Points
Special Features
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- M.2 Q-Release
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- M.2 heatsink backplate
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 header
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
- Q-Code
- M.2 Q-Latch
- M.2 Q-Release
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- M.2 heatsink backplate
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 header
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Software Features
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Aura Sync
ASUS CPU-Z
ASUS DriverHub
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
Armoury Crate
- Fan Xpert 4
- Aura Sync
ASUS CPU-Z
ASUS DriverHub
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
Remote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
Ready for IPMI Expansion Card*
1 x BMC header
* IPMI Expansion Card is sold separately.
- ASUS Control Center Express(ACCE)
Ready for IPMI Expansion Card*
1 x BMC header
* IPMI Expansion Card is sold separately.
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE (UEFI mode)
Accessories
Cables
2 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x DisplayPort cable
1 x 4pin to 24-pin ATX power connector
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Q-Latch package(2 in 1)
2 x M.2 Q-Slide package
2 x M.2 Rubber Packages
1 x Fan bracket
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x QSG
2 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x DisplayPort cable
1 x 4pin to 24-pin ATX power connector
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Q-Latch package(2 in 1)
2 x M.2 Q-Slide package
2 x M.2 Rubber Packages
1 x Fan bracket
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x QSG
Operating System
Windows® 11
Form Factor
CEB 12 inch x 11 inch (30.5 cm x 28.0 cm)
Prodotti Alternativi
876,22 € 876,22 €ASUS - Pro WS TRX50-SAGE WiFi Triple M.2 ECC-D5 SSI CEB Socket sTR5
Scheda madre di classe Workstation3
Scheda madre di classe Workstation3 PCI-Express 16x 5.0 + 2 PCI 4.02 Slot M.2 PCIe 5.0 + 1 Slot PCIe 4.0Lan 2.5 + 10GbE - WiFi 7 + Bluetooth 5.4Per processori AMD Threadripper e Threadripper Pro serie 7000
876,22 € IVA EsclusaCodice prodotto: AMB903 - 90MB1FZ0-M0EAY0 Disponibilità: Arrivo previsto in circa 3gg
1 068,99 € IVA Inclusa
