#AMB970 - 90MB1HE0-M0EAY0
Nuovo
Disponibilità: Arrivo previsto in circa 3gg
Attenzione: Ultimi articoli in magazzino!
Disponibile dal:
Alimentazione a 12(50A)+1(60A)+1 stadi di potenza
Fino a 192GB di Ram
3 Slot M.2
Lan 2.5Gb - WiFi 6E - Bluetooth

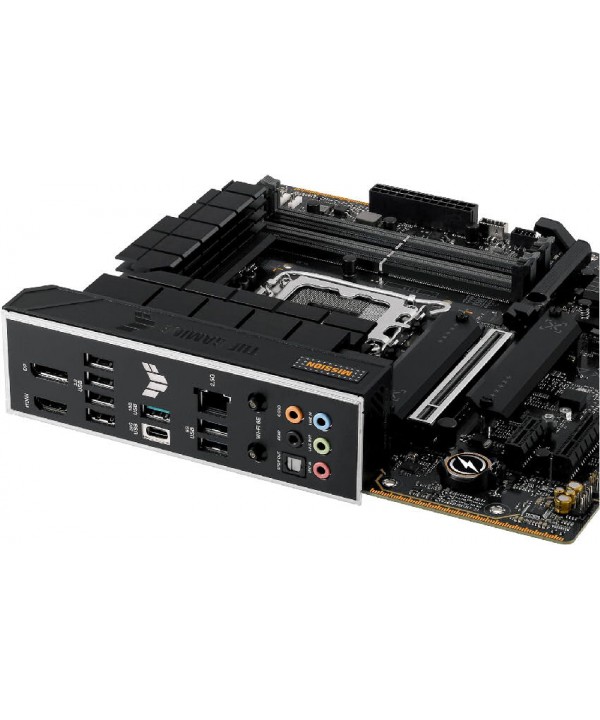

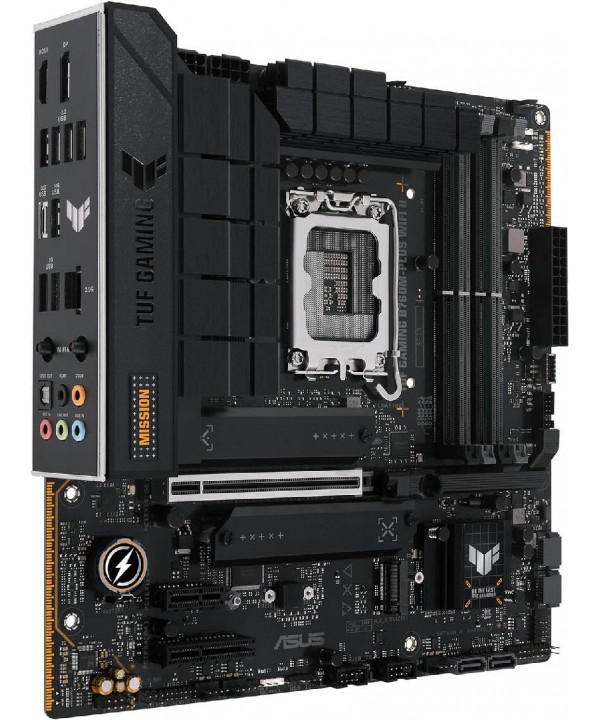

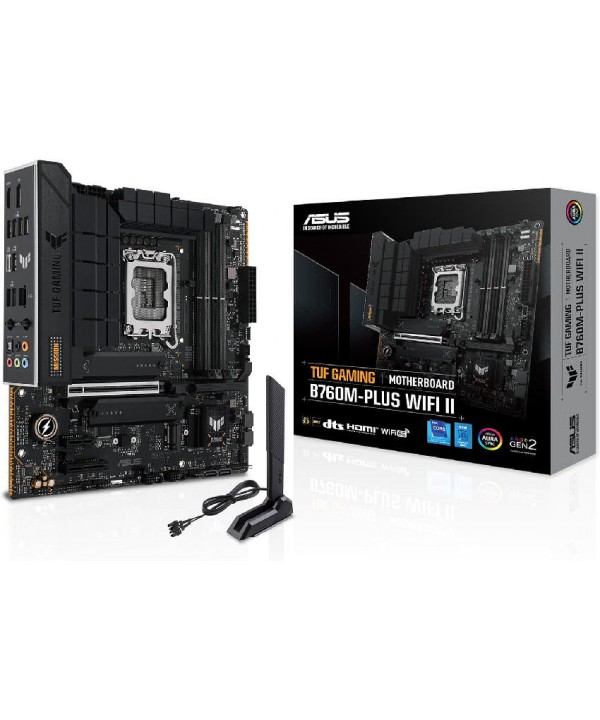

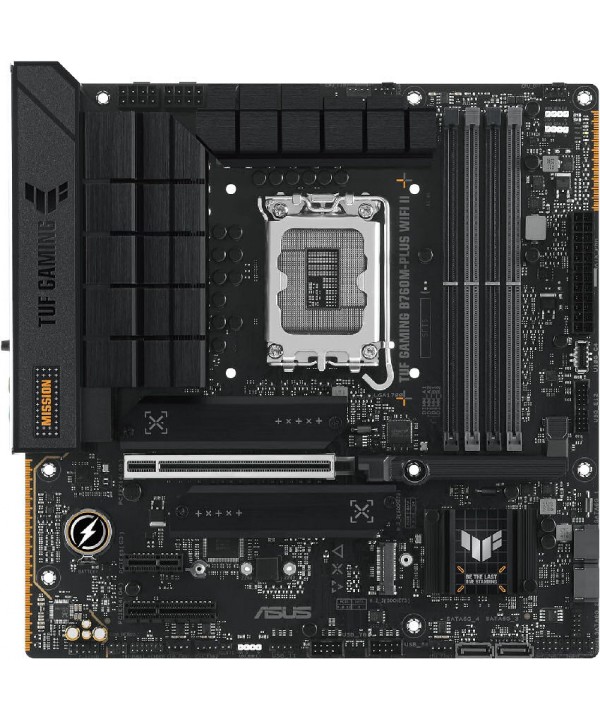

La ASUS TUF GAMING B760M‑PLUS WIFI II combina le funzionalità più recenti delle piattaforme Intel con la durabilità tipica della serie TUF.
Progettata per gamer e PC builder che cercano affidabilità e facilità di assemblaggio, supporta memorie DDR5 ad alta velocità, connettività Wi‑Fi 6E e slot PCIe 5.0 per schede grafiche di ultima generazione.
È ideale per chi vuole una base solida e longeva per un sistema da gioco compatto ma potente.
Processore
Socket Intel® LGA1700 per 14ª/13ª/12ª Gen Intel® Core™, Pentium® Gold e Celeron®
Supporto Intel® Turbo Boost Technology 2.0 e Turbo Boost Max Technology 3.0
Chipset
Intel® B760
Memoria
4 × DIMM, fino a 192GB, DDR5 7800+(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 non‑ECC, un‑buffered
Dual channel
Supporto Intel® Extreme Memory Profile (XMP) e ASUS OptiMem II
Grafica integrata
1 x DisplayPort 1.4
1 x HDMI 2.1 (supporta 4K @ 60Hz come specificato da Intel®)
Slot di espansione
1 x PCIe 5.0 x16 (supporta SafeSlot Core+)
1 x PCIe 4.0 x16 (in modalità x4)
1 x PCIe 3.0 x1
Archiviazione
3 x M.2:
M.2_1: supporta PCIe 4.0 x4
M.2_2: supporta PCIe 4.0 x4
M.2_3: supporta PCIe 4.0 x2
4 x porte SATA 6Gb/s
Supporto RAID 0, 1, 5, 10
Rete
Realtek 2.5Gb Ethernet
Wi‑Fi 6E + Bluetooth 5.2
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Uscita ottica S/PDIF sul pannello posteriore
Supporto Jack‑detection, Multi‑streaming e Front Panel Jack‑retasking
Porte I/O posteriori
1 x USB 3.2 Gen 2x2 Type‑C
1 x USB 3.2 Gen 2 Type‑A
2 x USB 3.2 Gen 1 Type‑A
4 x USB 2.0 Type‑A
1 x DisplayPort
1 x HDMI
1 x Porta LAN 2.5GbE
1 x Optical S/PDIF out
5 x Jack audio
Connettori interni
1 x Header USB 3.2 Gen 2 Type‑C
1 x Header USB 3.2 Gen 1 (2 porte)
3 x Header USB 2.0 (fino a 5 porte USB 2.0)
1 x Header Thunderbolt™ (USB4)
Gestione raffreddamento
Dissipatori VRM e M.2
Header ventole ibridi (CPU, chassis, pompa AIO)
Supporto Fan Xpert 2+ via Armoury Crate
Alimentazione
Design di alimentazione 12+1+1 fasi DrMOS
Connettori ProCool 8+8 pin
PCB a sei strati
Form factor
Micro‑ATX (24.4 cm x 24.4 cm)
Sistema operativo
Windows® 11, Windows® 10 64‑bit
Prestazioni aggiornabili: supporto PCIe 5.0 e DDR5 per schede video e memorie di nuova generazione.
Connettività completa: Wi‑Fi 6E, LAN 2.5 Gb e USB‑C 20 Gbps per periferiche moderne.
Durabilità certificata TUF: componenti military‑grade, PCB a 6 strati e protezioni ESD.
Facilità di assemblaggio: I/O shield pre‑montato, Q‑LED, Q‑Latch e Q‑DIMM per montaggio senza complicazioni.
Raffreddamento intelligente: dissipatori su VRM e M.2, con controllo ventole ibrido.
Gaming competitivo: perfetta per build compatte con GPU di ultima generazione e alta velocità di memoria.
PC per creatori di contenuti: ideale per editing foto/video e streaming grazie alle alte frequenze DDR5 e storage M.2 multiplo.
Upgrade da piattaforme precedenti: compatibile con Intel 12ª‑14ª Gen e connettività aggiornata per uso quotidiano e gaming a lungo termine.
