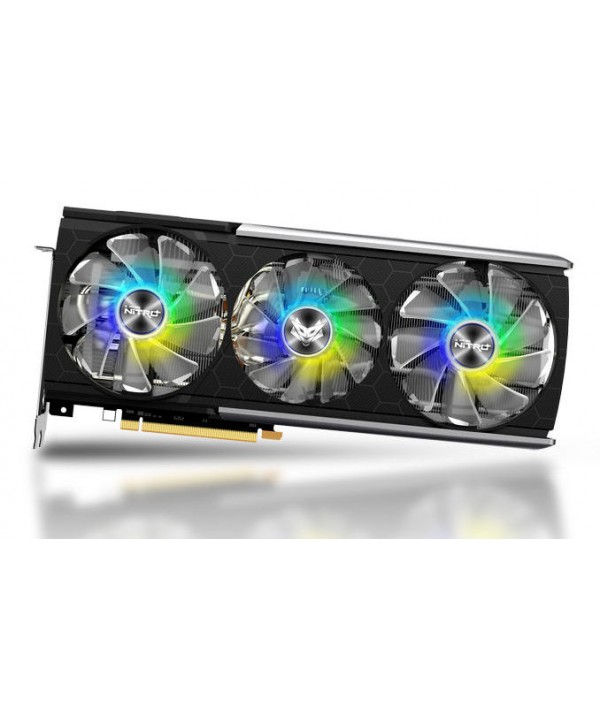

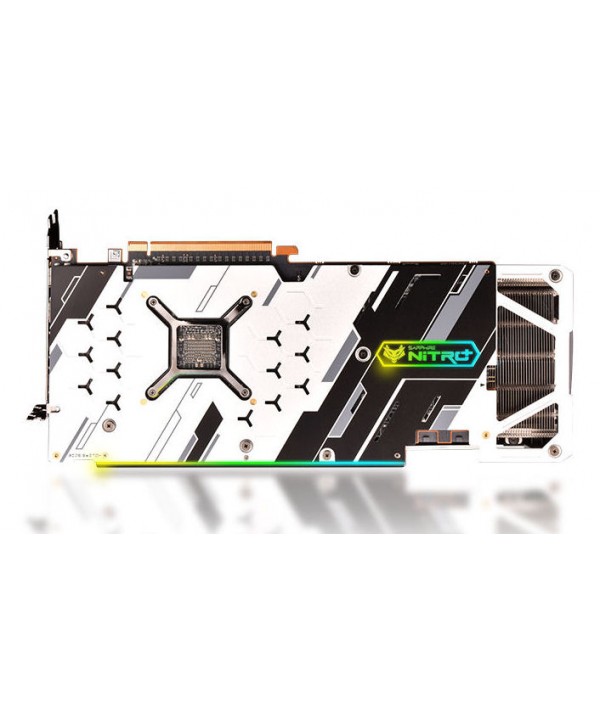

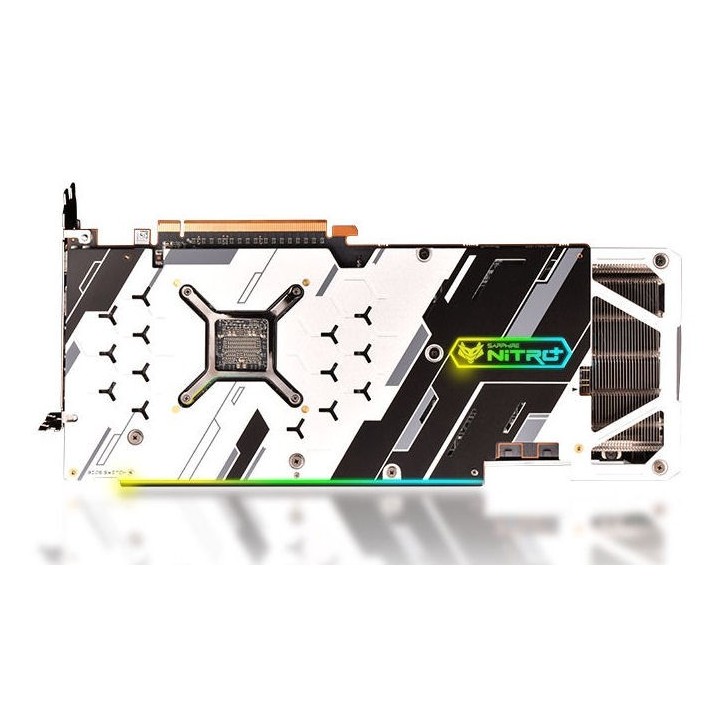

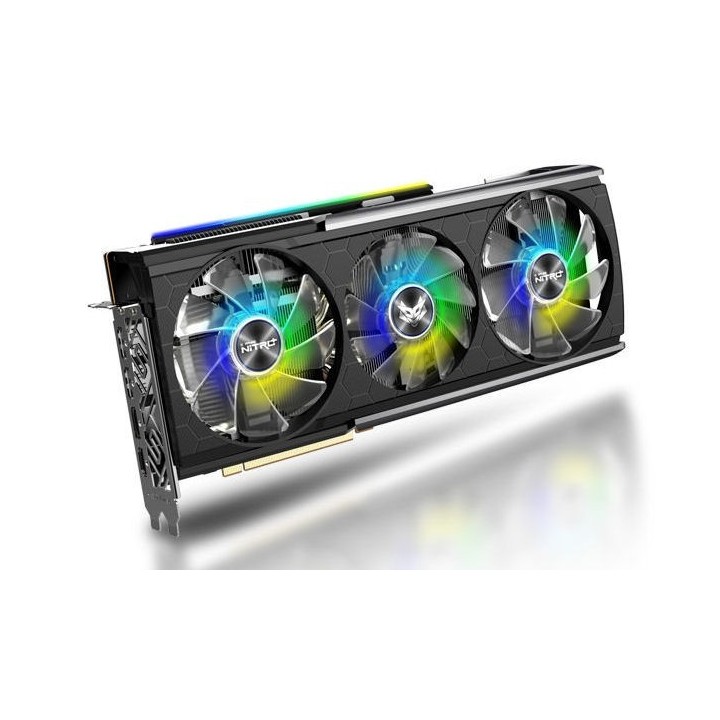

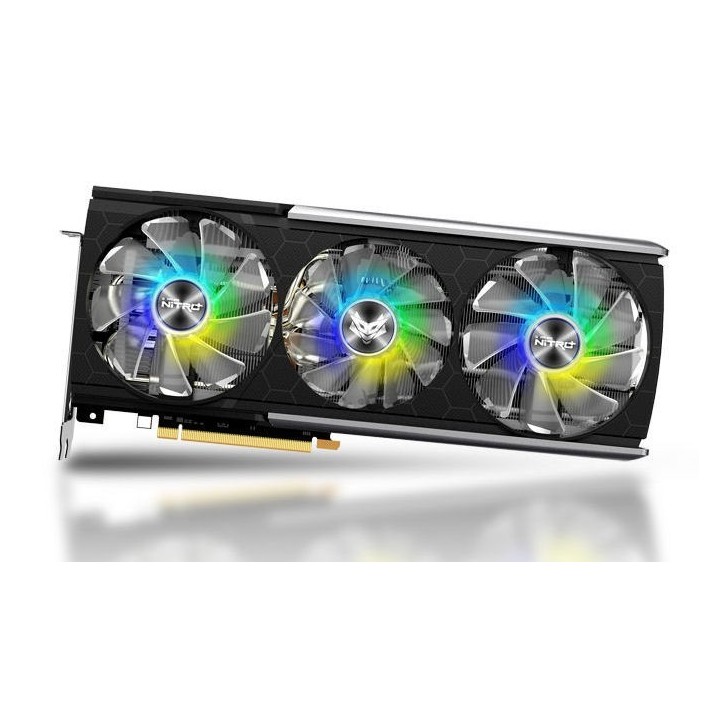

SAPPHIRE - RX 5700 XT Nitro+ Special Edition 8GB

GPU

Radeon™ RX 5700 Graphics
2nd Gen 7nm GPU
RDNA Architecture

Engine Clock

Boost Clock: Up to 2035MHz
Game Clock: Up to 1965 MHz
Base Clock: 1840 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2560

Memory Size/Bus

8GB/256 bit GDDR6

Memory Clock

14.4 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 4096×2160@60Hz
DisplayPort1.4: 5120×2880@60Hz

Interface

PCI-Express 4.0

Output

2x HDMI
2x DisplayPort

BIOS Support

Dual UEFI

API

Vulkan®
OpenGL® 4.6
OpenCL 2.0
DirectX® 12
Shader Model 6.4

Game Index

Extreme 1440P

Sapphire Features

TriXX Supported
TriXX Boost
Software BIOS Switch
Max Boost
Power Design
Optional Fan Glow ARGB support
NITRO Glow
ARGB Audio Visualization
Fan Check
Free Flow
VR Friendly
Intelligent Fan Control
Precision fan control
Robust VRM Cooling
Robust Memory Cooling
Tri-X Cooling Technology
Backplate (Tough Metal Backplate)
Two-Ball Bearing
Fan Quick Connect
Fuse Protection
Black Diamond Choke
Dual BIOS

AMD Features

RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI Express 4.0 Support
Video Streaming up to 8K
Display Port 1.4 (HBR3) / DSC
Radeon™ Software
Radeon™ Boost
Radeon™ Image Sharpening
Radeon™ Anti-Lag
AMD FidelityFx
Async Compute
Radeon™ Rays Audio + True Audio Next
Radeon™ FreeSync™ 2 HDR
Radeon™ VR Ready Premium

Cooling

Tri-X Cooling
Triple Fan
Two-Ball Bearing

Form Factor

2.5 slot, ATX

Dimension: 306x 135 x 49 (mm)

Power Consumption

285W

OS

Linux®, Windows® 10, Windows® 7

64bit operating system required

System Requirement

Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply).
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
