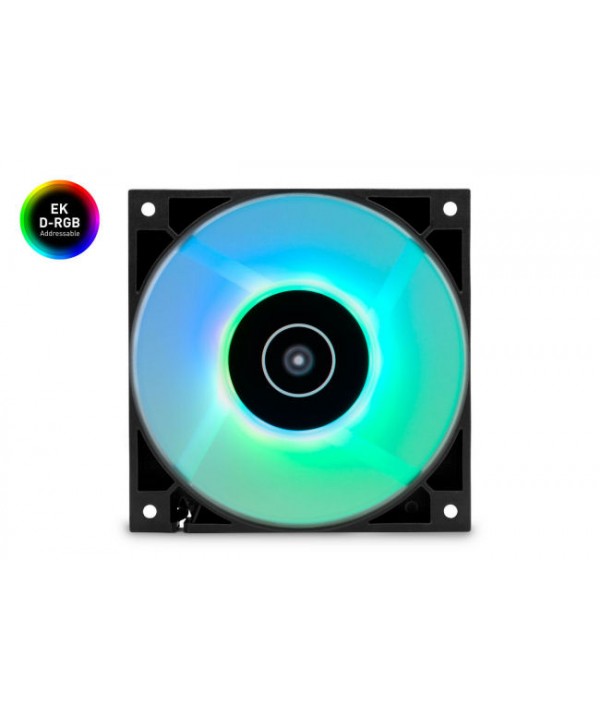

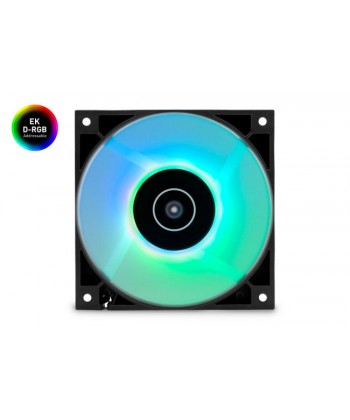

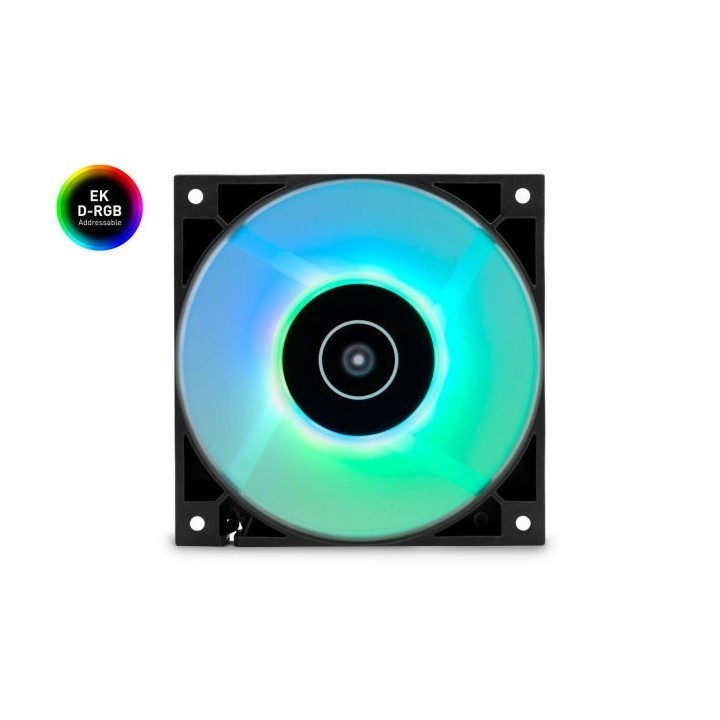

EKWB - EK-Vardar S Ventola 120mm PWM RGB 3pin

Mechanical and electrical specifications:

- Maximum speed: 2200 RPM (+/- 10%)
- Rated voltage: 12V DC
- Power draw: 2.16W
- LED power draw: ~0.7W (0.14A)
- PWM duty cycle: 25-100% - ER (Extended Range)
- Connector: 4-pin PWM header
- Shaft bearing: Sleeve bearing
- Dimensions: 120 x 120 x 25 mm
- Black cable length: 500 mm
- RGB cable length: 500 mm
- RGB connector classic 3-pin (+5V, Data, Empty, Ground)

Performance characteristics:

- Max air flow: 66,04 CFM = 112,20 m³/h (at maximum speed)
- Static pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed)
- Noise level: 36,4dBA (at maximum speed)
