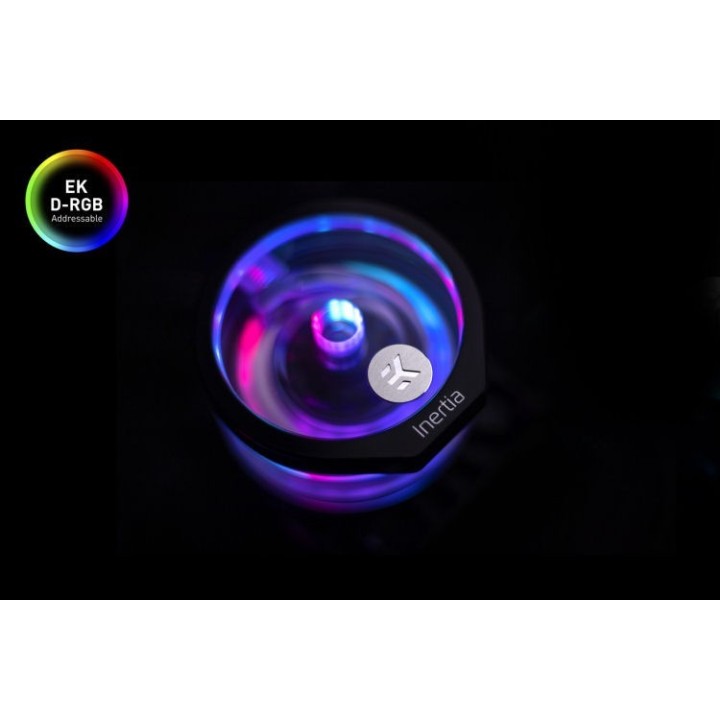

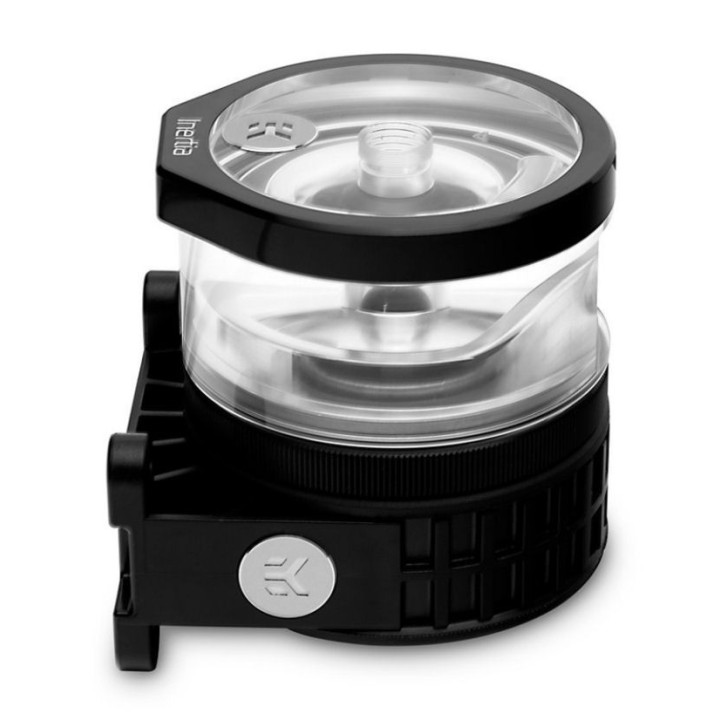

EKWB - EK-Quantum Inertia D5 PWM D-RGB - Plexi

EK-Quantum Inertia D5 PWM D-RGB is a high-performance liquid cooling standalone pump, built around the market-proven Genuine D5 water pump and the new Quantum Inertia top with an advanced vibration-reducing mounting clamp. This unit offers increased hydraulic performance (up to 15%) compared to the original factory top and it comes with a pre-installed 3-pin 5V D-RGB LED strip for sophisticated illumination. This pump features a single inlet (on the top) and a single outlet port (on the side) for the installation of two standard G1/4 threaded fittings/barbs.

EK-Quantum Inertia D5 PWM D-RGB can also be upgraded with any of the UNI brackets for additional mounting options.

Technical specifications:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector:  4-Pin Molex 50cm cable length
- Signal cable: 4-Pin PWM FAN connector 60cm cable length
- D-RGB cable length: 50cm
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:
- EK-Quantum Inertia D5 PWM D-RGB (incl. EK-D5 PWM G2 pump motor) - cables with a black sleeve
- EK-Quantum Inertia D5 PWM D-RGB Pump Mount
- Self-adhesive mounting hole pattern sticker
- Mounting mechanism (incl. required Allen keys)
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
